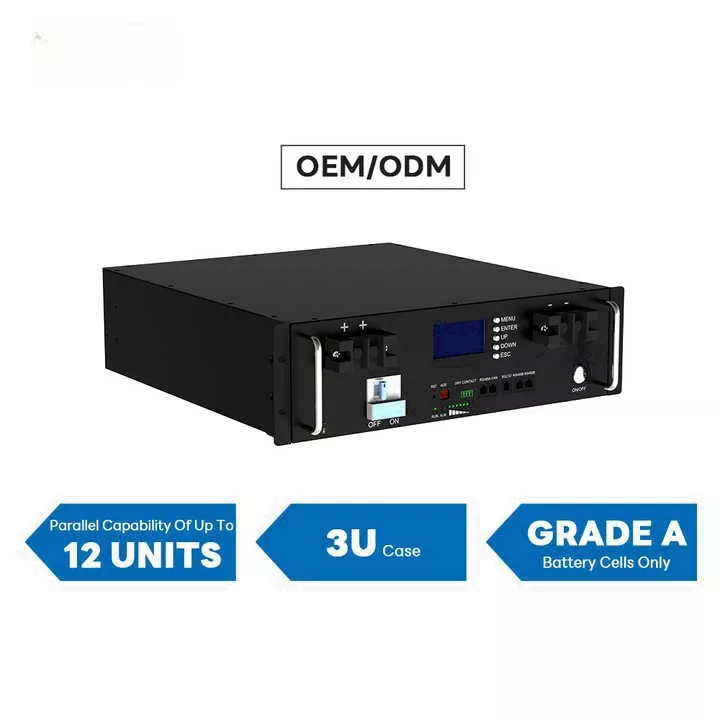

48V 100Ah rack-mounted lifepo4 battery pack
48V 100Ah rack-mounted lifepo4 battery pack
48V 100Ah rack-mounted lifepo4 battery pack
$545.00
Model: BAU-Rack-48100
Battery Type: LiFePo4 Battery
Rated voltage（v）: 48V
Rated capacity(Ah/10hr) :100AH
Certification: CE, UN38.3, MSDS, IEC
48V 100Ah rack-mounted lifepo4 battery pack
– Flexible Investment: 5kWh/10kWh modular design, scalable from 5 to 150kWh TUV.
– Certification: Battery IEC/UL standard.
– Perfect Compatibility: Compatible to most inverter brands on the market.
– Safety: BMS & Breaker two levels over current protection.
| Model | BAU-Rack-48100 |
|---|---|
| Product name: | 48V100Ah Battery |
| Cell combination | 15S1P |
| Cycle life | 6000 cycles @80% DOD, 0.5C |
| Rate voltage(Vdc) | 48v |
| Rate capacity(AH) | 100a |
| Energy storage(KWH) | 4.8kw |
| Charge Voltage | 54V |
| Max. Charge current(A) | 100A |
| Max. Discharge current(A) | 100A |
| Discharge cut-off voltage(VDC) | 40.5V |
| Charge cut-off voltage(VDC) | 54.75V |
| Charge temperature | 0 ℃ to 55℃ |
| Discharge temperature | -25 ℃ to 55℃ |
| Storage temperature | -20℃ to 55 ℃ |
| IP class | IP21 |
| Material system | LiFePO4 |
| Pack Dimensions L*W*H(mm) | 480*442*132 (3U) |
| Package Dimension L*W*H(mm) | 580*530*210 |
| Net Weight(kg) | 42 |
| Gross Weight(kg) | 47 |
| Protocol | CAN/Bus/RS485/RS232 |
| Certificate(pack) | UN38.3, MSDS |
