Hybrid Solar Inverter 12KW S6-EH1P12-K03-NV-YD-L

$1,999.00

Model: S6-EH1P12-K03-NV-YD-L

Output: Single Phase

Inverter Efficiency: 97.6%

Display: 7.0” LCD Display & Bluetooth + APP

Communication: RS485

Type

Clear

SKU: S6-EH1P(12-16)K03-NV-YD-L Category: Solar Inverter

Hybrid Solar Inverter 12KW S6-EH1P12-K03-NV-YD-L Single Phase Low Voltage

10 seconds of 200% overload capability

Automatic switchover time is <4ms, providing seamless transitions from grid to backup

Supports a maximum input current of 20A, making it ideal for all high-power PV modules of any brand

CONDITION	New
PRODUCT NAME:	Hybrid Solar Inverter 12KW
MODEL NUMBER:	S6-EH1P(12-16)K03-NV-YD-L
BRAND NAME:	solis
INPUT VOLTAGE:	80 – 520v
OUTPUT VOLTAGE:	220V / 230V
OUTPUT CURRENT:	52.2A – 72.7A
OUTPUT FREQUENCY:	50HZ / 60HZ
TYPE:	DC/AC Inverter
BATTERY TYPE:	Li-ion / Lead-acid
BATTERY VOLTAGE:	40v – 60v
MPPT VOLTAGE RANGE:	80 – 520v
OPERATING TEMPERATURE RANGE:	-25℃ – +60℃
TOPOLOGY:	Transformerless
PHASE:	Single Phase Power Inverter
PV INPUT POWER:	19.2 kw – 22.4 kw
NOISE (DB):	＜65db (A)
INVERTER EFFICIENCY:	97.6%
SIZE:	464763282mm
WEIGHT:	48.5KG
MAX PV ARRAY SIZE:	24kw
MAX CHARGE / DISCHARGE CURRENT:	250A
COMMUNICATION:	CAN / RS485
OPERATION PHASE:	L/N/PE
RATED GRID OUTPUT CURRENT:	54.5A / 52.2A
POWER FACTOR:	＞0.99 (0.8 leading – 0.8 lagging)

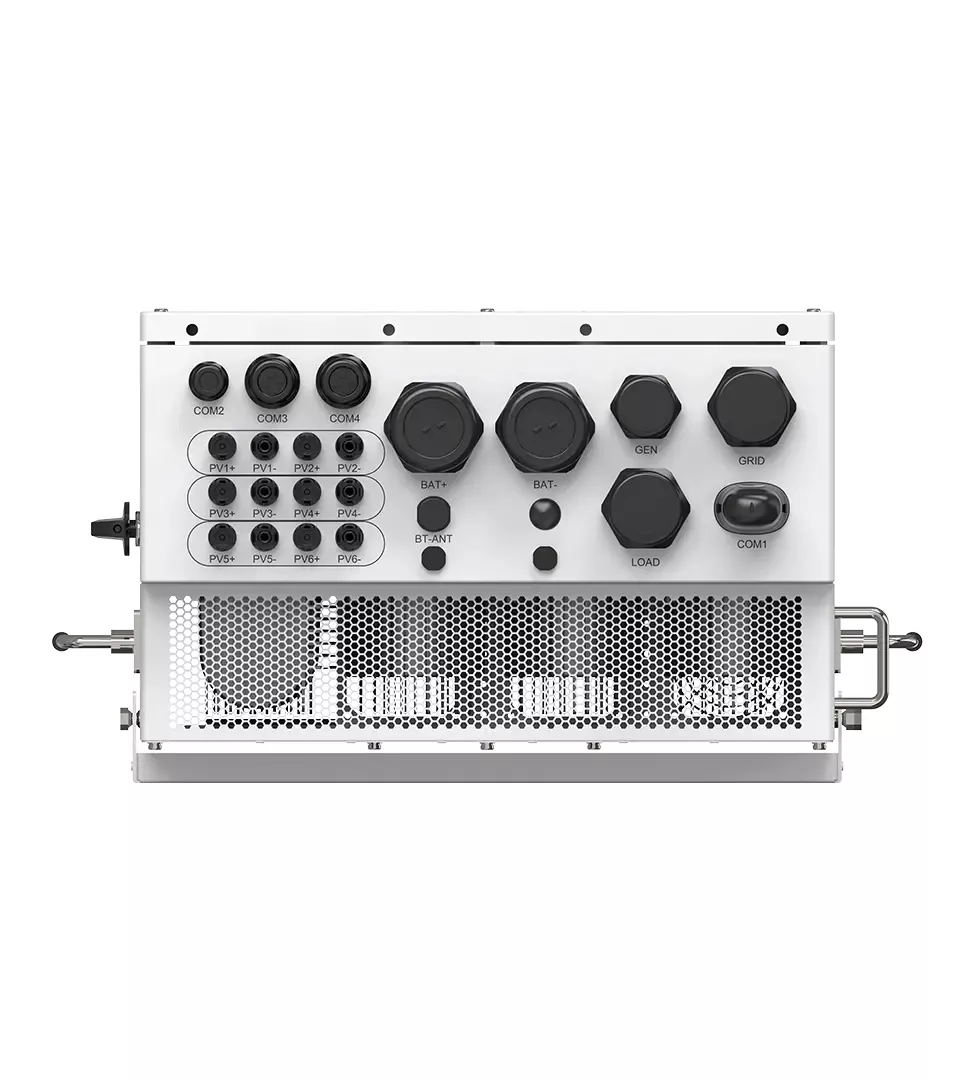

DC CONNECTION:	MC4 plug(pv port) / Terminal Block(BAT port)
AC CONNECTION:	Terminal Block
