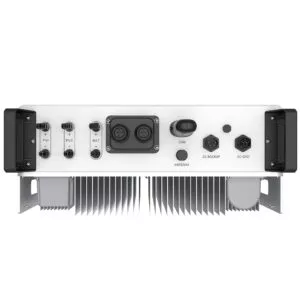

Solis S6-EH3P10K2-H High Voltage Energy Storage Inverter

Name: Solis S6-EH3P10K2-H High Voltage Energy Storage Inverter
SKU: S6-EH3P10K2-H
Availability: InStock

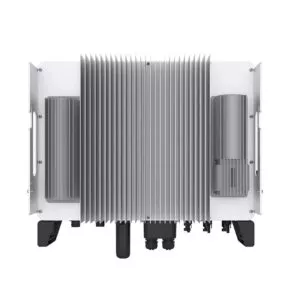

Solis S6-EH3P10K02-NV-YD-L Energy Storage Inverter

Solis S6-EH3P10K2-H High Voltage Energy Storage Inverter

$1,381.00

Brand Name:Solis

Model: S6-EH3P10K2-H

Type: Three-phase

INQUIRY NOW

SKU: S6-EH3P10K2-H Category: Solar Inverter

Description
Reviews (0)

Solis S6-EH3P10K2-H High Voltage Energy Storage Inverter

Industry leading 50A/10kW max charge/discharge rating
Automatic UPS switching
Supports Peak Shaving Mode
Pre-made Battery, Meter and CAN cabling to reduce installation time

MODEL	S6-EH3P10K2-H.
Recommended max. PV array size	16 kW.
Max. usable PV input power	12.8 kW.
Max. input voltage	1000 V.
Start-up voltage	160 V
Rated voltage	600 V
MPP VOLTAGE RANGE	200 – 850V.
NO. OF MPP TRACKERS	2 / 2
MAX INPUT CURRENT	16 A / 16 A.
MAX. SHORT-CIRCUIT CURRENT	24 A / 24 A.
BATTERY
BATTERY TYPE	Li-ion
BATTERY VOLTAGE RANGE	120 – 600V.
MAX. CHARGE / DISCHARGE CURRENT	25 A.
COMMUNICATION	CAN / RS485
Input AC (Grid side)
RATED OUTPUT POWER	8kW
RATED GRID VOLTAGE	3/N/PE, 380 V / 400 V.
RATED GRID FREQUENCY	50 Hz / 60 Hz
RATED GRID OUTPUT CURRENT	12.2 A / 11.5 A
POWER FACTOR	> 0.99 (0.8 leading – 0.8 lagging).
Input AC (Grid side)
THDI	<3%
INPUT VOLTAGE RANGE	304 – 437 V / 320 – 460 V.
MAX. INPUT CURRENT	18.2 A.
FREQUENCY RANGE	45 – 55 Hz / 55 – 65 Hz.
RATED OUTPUT POWER	8kW
MAX. APPARENT OUTPUT POWER	12.8 kVA, 60 s.
BACK-UP SWITCH TIME	< 10 ms
RATED OUTPUT VOLTAGE	3/N/PE, 380 V / 400 V.
RATED FREQUENCY	50 Hz / 60 Hz.
RATED OUTPUT CURRENT	12.2 A / 11.5 A.
THDV (@LINEAR LOAD)	< 2%
MAX.EFFICIENCY	97.50%
EUROPEAN EFFICIENCY	97.41%
Bat charged by PV max. efficiency	98.22%
BAT DISCHARGED TO AC MAX. EFFICIENCY	97.50%
DC REVERSE POLARITY PROTECTION	yes.
Anti-islanding protection	yes.
INTEGRATED AFCI 2.0	Optional.
Short circuit protection	yes
Integrated DC switch	Yes
DC reverse-polarity protection	Yes
PV over voltage protection	Yes
Battery reverse protection	Yes
DIMENSIONS (W × H × D)	600 × 500 × 230 mm.
WEIGHT	30.2 kg
TOPOLOGY	Transformerless
SELF-CONSUMPTION (NIGHT)	< 25W
OPERATING AMBIENT TEMPERATURE RANGE	-25 ~ +60°C.
INGRESS PROTECTION	IP66.
NOISE EMISSION (TYPICAL)	< 46.9 dB(A).
COOLING CONCEPT	Natural cooling
MAX. OPERATION ALTITUDE	4000 m
SAFETY / EMC STANDARD	IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-3.
DC CONNECTION	MC4 connector
AC CONNECTION	Quick connection plug.
DISPLAY	LED indicator & Bluetooth + APP.
COMMUNICATION	CAN, RS485, Optional: Wi-Fi, Cellular, LAN.

Grid connection standard

G98 or G99, VDE-AR-N 4105/VDE V 0124, EN 50549-1, VDE 0126/UTE C 15/VFR:2019, RD 1699/RD 244/UNE 206006/ UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, TOR, EIFS 2018.2, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA and PEA
