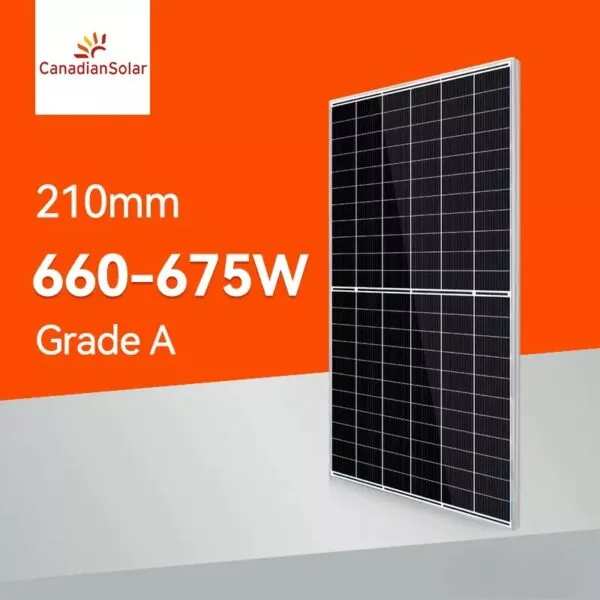

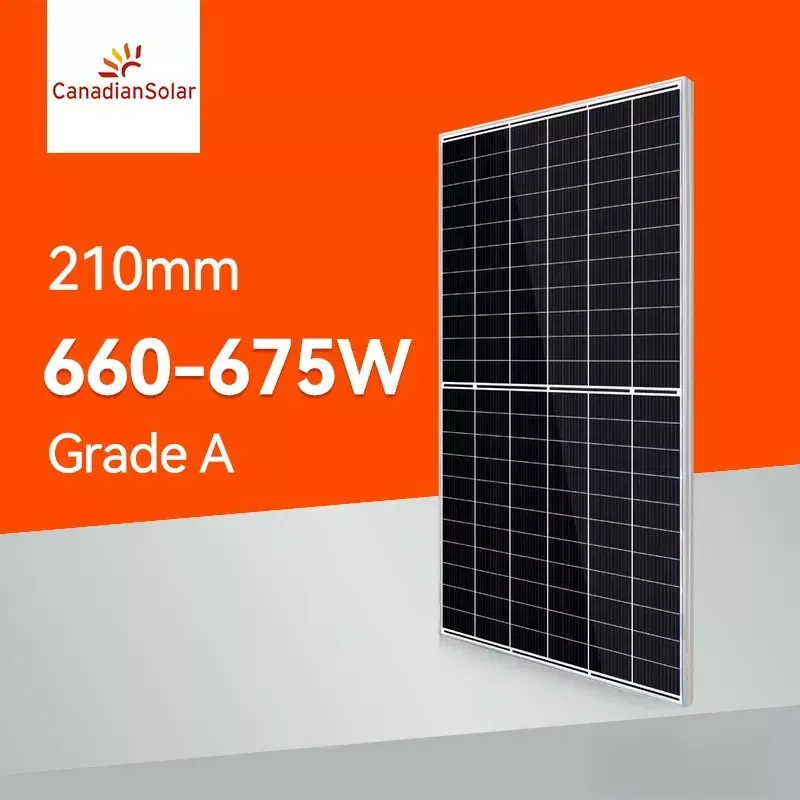

Tier 1 Canadian Solar Panel 660W 665W 670W 675W 210mm Monocrystalline Photovoltaic
- High Efficiency Performance: The Canadian Solar Panel delivers impressive energy conversion efficiency, ensuring maximum power output.
- Advanced Half-Cell Technology: Using half-cell design reduces internal resistance and improves overall performance, even under shaded conditions.
- Superior Durability: Built to withstand harsh environmental conditions, offering long-lasting performance with enhanced resistance to potential-induced degradation (PID).
- Enhanced Power Output: This Tier 1 panel is optimized for maximum energy yield, ensuring better performance in real-world conditions, even at low light levels.
Tier 1 Canadian Solar Panel MECHANICAL SPECIFICATION | |||
Format | 2384 ˣ 1303 ˣ 35 mm | ||
Weight | 39.4kg±5% | ||
Cell | 132 monocrystalline PERC half cell,210 mm | ||
Junction Box | Protection class IP67,with bypass diodes | ||
Cable | 4mm² Solar cable | ||
Connector | MC4 Compatible |
CS7N | 660MS | 665MS | 670MS | 675MS |
Nominal Max. Power (Pmax) | 660W | 665W | 670W | 675W |
Opt. Operating Voltage (Vmp) | 38.3V | 38.5V | 38.7V | 38.9V |
Opt. Operating Current (Imp) | 17.24A | 17.28A | 17.32A | 17.36A |
Open Circuit Voltage (Voc) | 45.4V | 45.6V | 45.8V | 46.0V |
Short Circuit Current (Isc) | 18.48A | 18.51A | 18.55A | 18.59A |
Module Efficiency | 21.2% | 21.4% | 21.6% | 21.7% |
