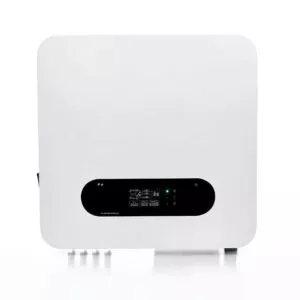

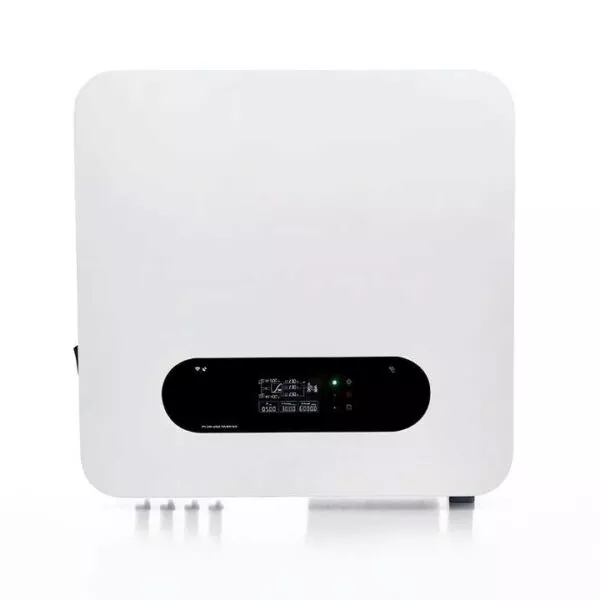

10KW Three Phase Hybrid Inverter
| MODEL | Â BAU-EPH10KTL |
|---|---|
| INPUT(DC) | |
| MAX. DC POWER | 15000W |
| MAX. DC VOLTAGE(VDC) | 1000 |
| MPPT VOLTAGE RANGE | 200~850 Vd.c |
| MAX. INPUT CURRENT(A) | 13A/13A |
| MAX. SHORT MPPT | 18A/18A |
| NUMBER OF MPP TRACKERS | 2 |
| STRINGS PER MPP TRACKER | 1 |
| OUTPUT (AC) | |
| NOMINAL OUTPUT POWER | 10000W |
| MAX. OUTPUT POWER | 11000W |
| NOMINAL OUTPUT VOLTAGE/RANGE (V) | 400Vac/ 380V |
| AC CONNECTION WITH PE | Three Phase |
| Â Â Â Â Â Â Â Â Â Â Â NOMINAL AC OUTPUT | 17A |
| CURRENT DISTORTION(THDI) | ＜3% |
| EFFICIENCY | |
| MAXIMUM CONVERSION EFFICIENCY | 98.2% |
| EUROPEAN EFFICIENCY | 97.5% |
| MPPT EFFICIENCY | 99.9% |
| SAFETY AND PROTECTION | |
| Â Â DC REVERSE-POLARITY PROTECTION | yes |
| Â OVERVOLTAGE PROTECTION | yes |
| SHORT CIRCUIT PROTECTION | yes |
| LEAKAGE CURRENT PROTECTION | yes |
| GRID MONITORING | yes |
| DC/AC SIDE SPD | yes |
| GENERAL PARAMETERS | |
| DIMENSIONS | 516/427/184mm |
| WEIGHT | 26kg |
| EMBEDDED DC SWITCH | Optional |
| NIGHT POWER CONSUMPTION (W) | ＜0.2 |
| ISOLATION TYPE | Transformerless |
| PROTECTION DEGREE | IP65 |
| OPERATING TEMPERATURE RANGE | -25℃~+ 60℃ |
| COOLING CONCEPT | Smart Cooling |
| ACOUSTIC NOISE LEVEL (DB) | ＜25 |
| DISPLAY | Graphic LCD |
| COMMUNICATION INTERFACE | RS485/WIFI/GPRS/CAN |
| WARRANTY | Standard 5 years |
