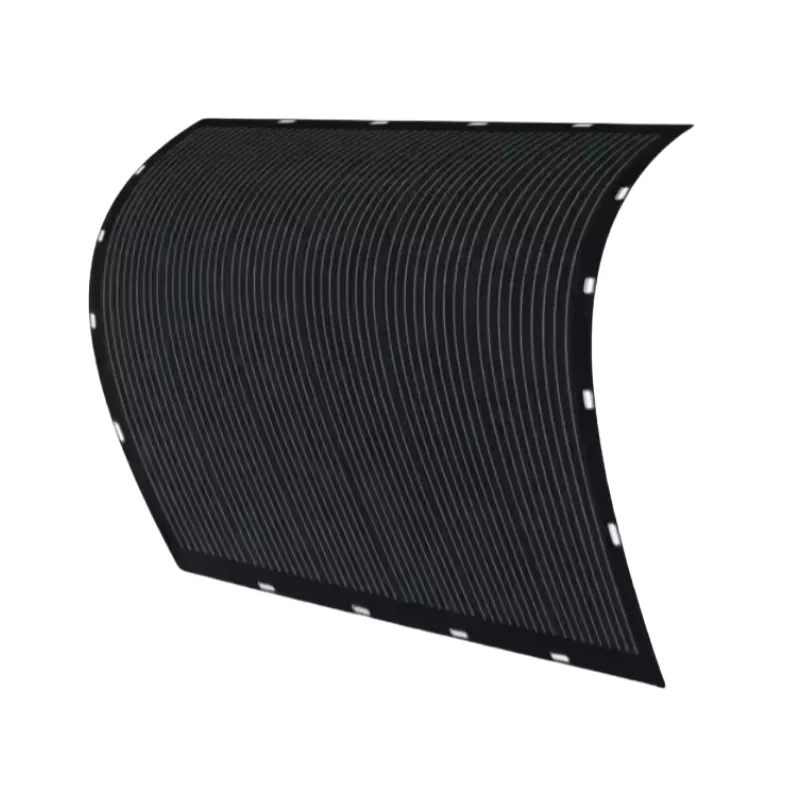

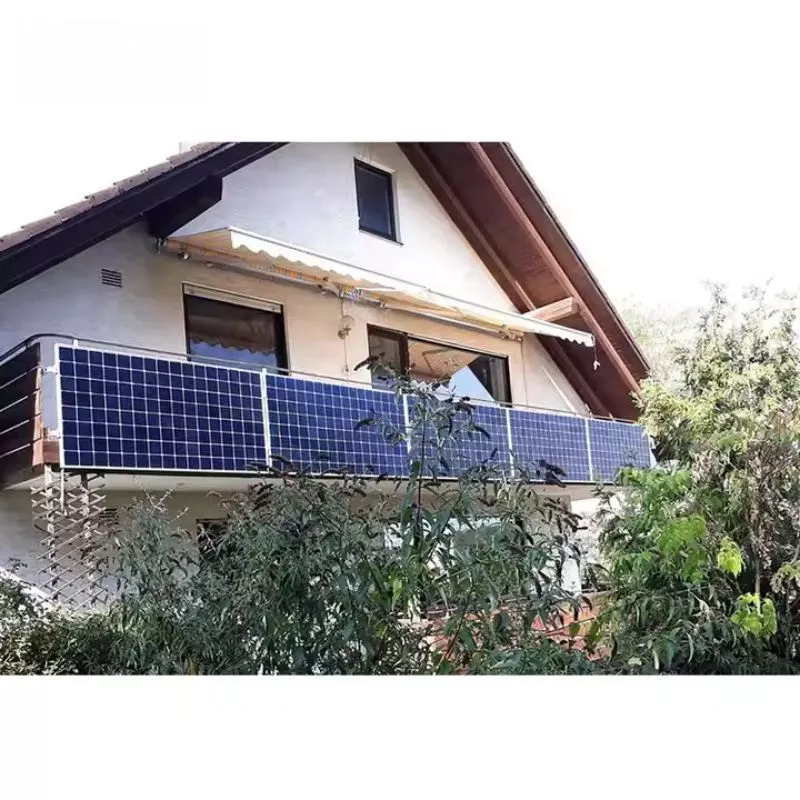

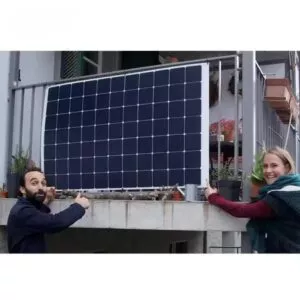

Balcony Photovoltaic System Solar Panel Flexible 200w 210w
$48.00
Model: BAUSP200PC
Warranty: 15 years quality, 25 years power
Max Power Range: 200 – 210w
Certification: CE, ISO9001/ISO1400, TUV, CQC
Passed EN45545 EU flame retardant standard
Balcony Photovoltaic System Solar Panel Flexible 200w 210w
| CONDITION | New |
|---|---|
| PRODUCT NAME: | Flexible Solar Panel 380w |
| MODEL TYPE: | BAUSP200PC |
| MAX POWER: | 200w |
| MAX-OPERATING VOLTAGE: | 15.90V |
| MAX-OPERATING CURRENT: | 12.63a |
| OPEN CIRCUIT VOLTAGE: | 19.0v |
| SHORT CIRCUIT CURRENT: | 13.52a |
| MODULE EFFICIENCY: | 18.3% |
| DIMENSION(L*W*H): | 1380*790*2.5mm |
| WEIGHT: | 3.4kg |
| BACKBOARD SPECIFICATION: | backboard(white) |
| CELL: | 56(4*14)/10bb P type |
| CELL TYPE: | P-type Battery |
| ENCAPSULAT MATERIAL: | EVA |
| FRAME: | none |
| WEIGHT PER UNIT AREA: | 3.12kg/㎡ |
| POWER PER UNIT AREA: | 183.5-192.6W/㎡ |
| CONNECTOR: | MC4 Compatible |
| JUNCTION BOX: | IP68 |
| CABLE SPECIFICATIONS: | 4m㎡, or customized |
| NOMINAL MODULE OPERATING: | 41 ± 2 ℃ |
| TEMPERATURE COEFFIENT OF PMAX: | -0.38%/℃ |
| TEMPERATURE COEFFIENT OF VOC: | -0.28%/℃ |
| TEMPERATURE COEFFIENT OF ISC: | 0.02%/℃ |
| MAXIMUM SYSTEM VOLTAGE: | DC1500v (IEC) |
| MAXIMUM SERIES FUSE RATING: | 20a |
| OPERATING TEMPERATURE RANGE: | -40℃ — +85℃ |
