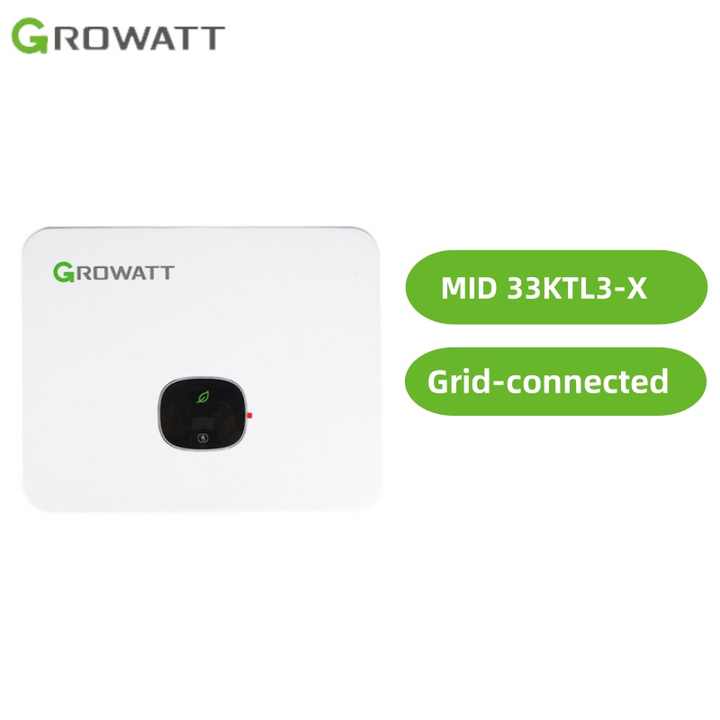

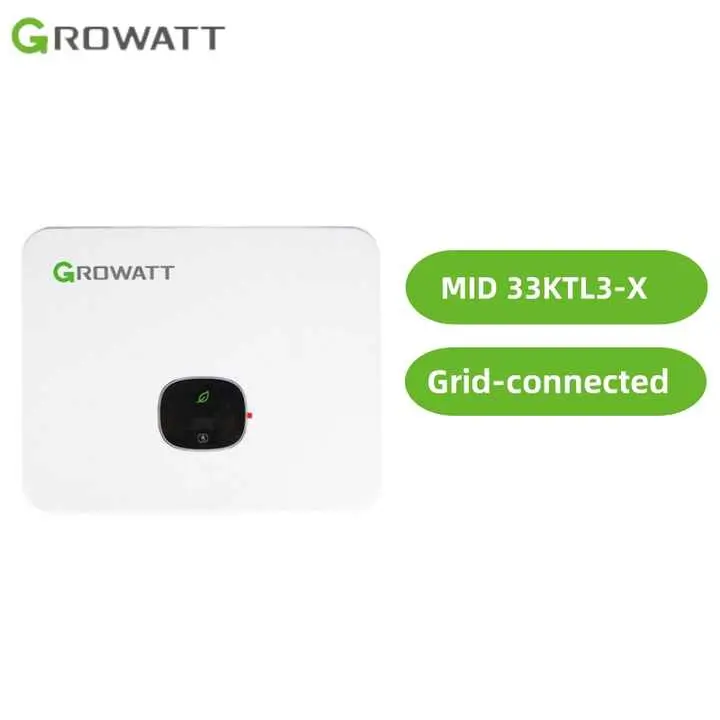

Growatt 33KW On-grid Inverter MID 33KTL3-X

Name: Growatt 33KW On-grid Inverter MID 33KTL3-X
SKU: MID 33KTL3-X
Availability: InStock

$1,316.00

Brand Name:Growatt

Model:MID 33KTL3-X

Type:Three Phase

SKU: MID 33KTL3-X Category: Solar Inverter

MODEL	MID 33KTL3-X
INPUT DATA (PV)
MAX. RECOMMENDED PV POWER	49500W.
START VOLTAGE	250V
MAX. DC VOLTAGE	1100V.
NOMINAL VOLTAGE	600V
MPP VOLTAGE RANGE	200-1000V.
NO. OF MPP TRACKERS	3.
NO. OF PV STRINGS PER MPP TRACKER	2.
MAX. INPUT CURRENT PER MPP TRACKER	26A.
OUTPUT DATA(AC)
AC NOMINAL POWER	33kW
MAX. AC APPARENT POWER	36.6kVa
NOMINAL AC VOLTAGE	220V/380V, 230V/400V (340-440V).
NOMINAL AC GRID FREQUENCY	50/60 Hz (45-55Hz/55-65 Hz).
MAX. OUTPUT CURRENT	55.5A
ADJUSTABLE POWER FACTOR	0.8leading…0.8lagging.
THDI	<3%
AC GRID CONNECTION TYPE	3W+N+PE.
EFFICIENCY
MAX.EFFICIENCY	98.8%
EUROPEAN EFFICIENCY	98.5%
MPPT EFFICIENCY	99.9%.
PROTECTION DEVICES
DC REVERSE POLARITY PROTECTION	Yes.
DC SWITCH	Yes
AC/DC SURGE PROTECTION	Type III / Type III.
INSULATION RESISTANCE MONITORING	Yes
AC SHORT-CIRCUIT PROTECTION	Yes
GROUND FAULT MONITORING	Yes
GRID MONITORING	Yes
ANTI-ISLANDING PROTECTION	Yes
RESIDUAL-CURRENT MONITORING UNIT	Yes
AFCI PROTECTION	Optional.
GENERAL DATA
DIMENSIONS (W / H / D)	580/435/230mm.
WEIGHT	29.5kg
OPERATING TEMPERATURE RANGE	–25°C … +60°C.
NIGHTTIME POWER CONSUMPTION	< 0.5W
TOPOLOGY	Transformerless.
COOLING	Natural convection
PROTECTION DEGREE	IP65
RELATIVE HUMIDITY	0-100%
ALTITUDE	4000m
DC CONNECTION	H4/MC4(Optional)
AC CONNECTION	Connector
DISPLAY	OLED+LED/WIFI+APP
INTERFACES: RS485 / USB/WI-FI/ GPRS/ RF/LAN	Yes/Yes/Optional.
WARRANTY: 5 YEARS / 10 YEARS	Yes /Optional.
