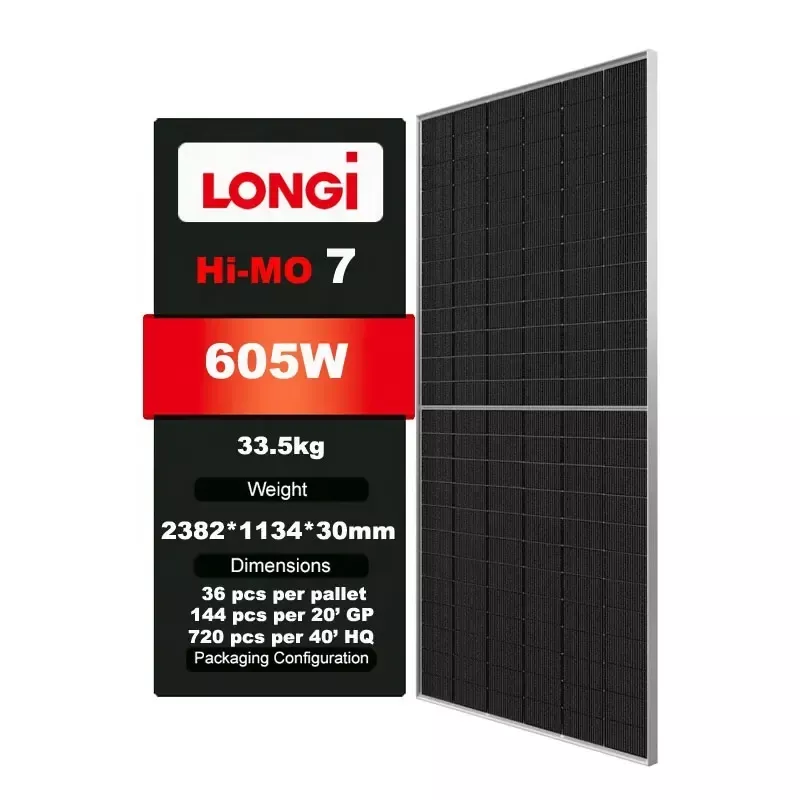

Longi HiMo 7 Solar Panels 605W Tier 1 A Grade
- Hi-MO7 LR7-72HGD
- Cells Layout: 144 Half Cells(6×24)
- Dimensions:2382 x 1134 x 30mm
- Weight: 33.5kg
- Modules per box: 36pcs
- Modules per 40′ container: 720pcs
|
Module Type
|
Himo 6 575~605w
|
Himo 7 575~635w
|
|
Cell Orientation
|
144 (6×24)
|
144 (6×24)
|
|
Junction Box
|
IP68
|
IP68
|
|
Output Cable
|
4mm2 , +400, -200mm/±1400mm
length can be customized
|
4mm2 , +400, -200mm/±1400mm
length can be customized
|
|
Glass
|
Single / Dual glass
|
Single / Dual glass
|
|
Dimension
|
2281×1134×30mm
|
2382×1130×30mm
|
|
Packaging
|
35pcs per pallet / 175pcs per 20’GP / 700pcs per 40’HC
|
36pcs per pallet / 180pcs per 20’GP / 720pcs per 40’HC
|
|
Operational Temperature
|
-40℃ ~ +85℃
|
|
|
Nominal Operating Cell Temperature
|
45±2℃
|
|
|
Fire Rating
|
IEC Class C
|
IEC Class C UL type 29
|
| Module Type | LR7-72HGD-585M-620M/Longi HiMo 7 Solar Panels | |||||||
| Maximum Power (Pmax/W) | 585 | 590 | 595 | 600 | 605 | 610 | 615 | 620 |
| Maximum Power Voltage-VMPP(V) | 43.79 | 43.90 | 44.01 | 44.12 | 44.23 | 44.34 | 44.44 | 44.55 |
| Maximum Power Current-IMPP(A) | 13.36 | 13.44 | 13.52 | 13.60 | 13.68 | 13.76 | 13.84 | 13.92 |
| Open Circuit Voltage-VOC(V) | 51.89 | 52.0 | 52.11 | 52.22 | 52.33 | 52.44 | 52.55 | 52.66 |
| Short Circuit Current-ISC(A) | 14.25 | 14.33 | 14.41 | 14.49 | 14.57 | 14.65 | 14.73 | 14.81 |
| Module Efficiency η m (%) | 21.7 | 21.8 | 22.0 | 22.2 | 22.4 | 22.6 | 22.8 | 23.0 |
