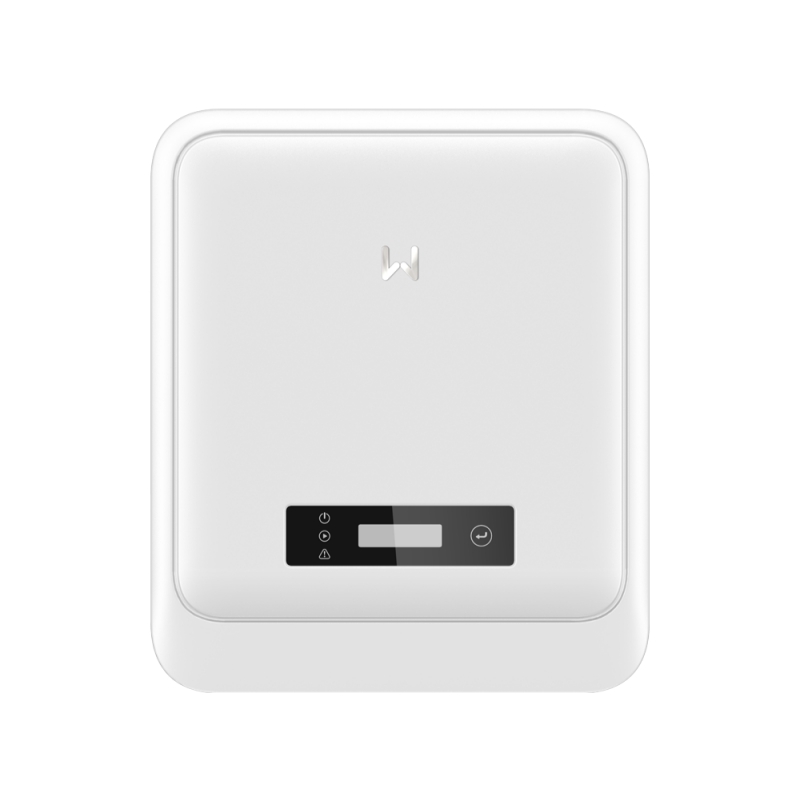

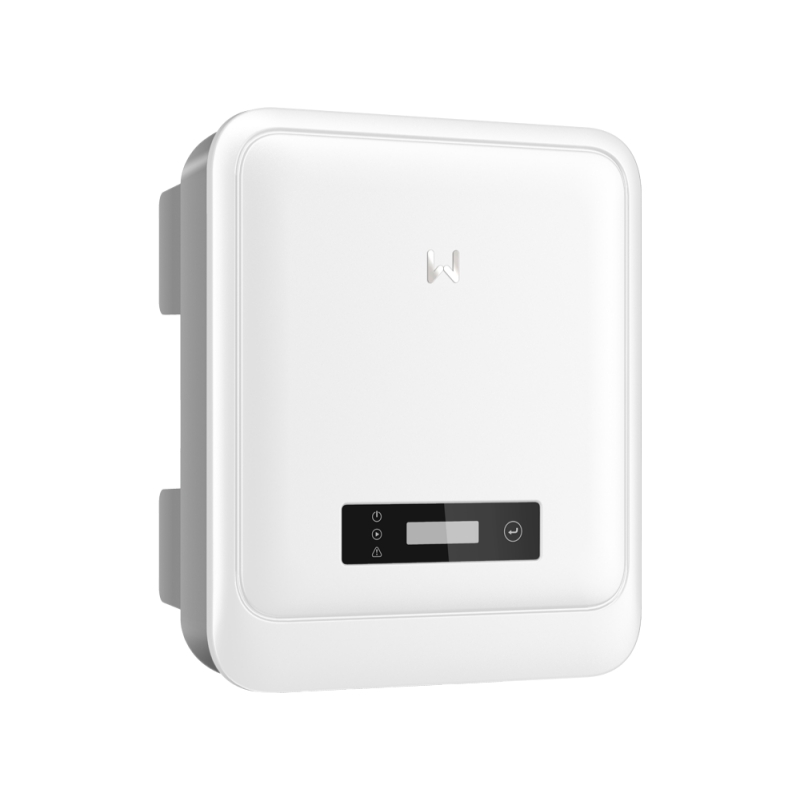

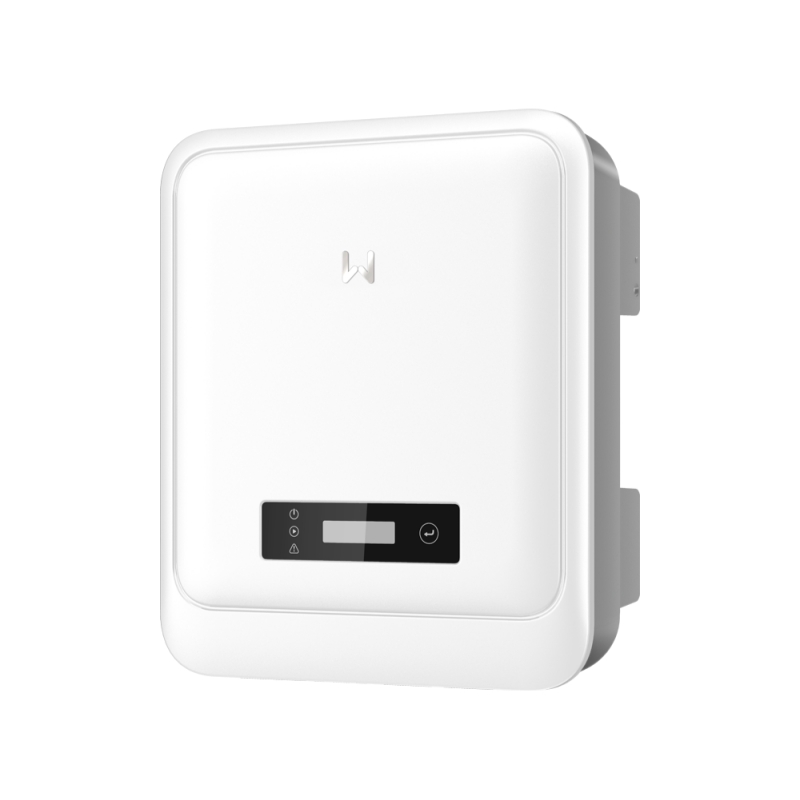

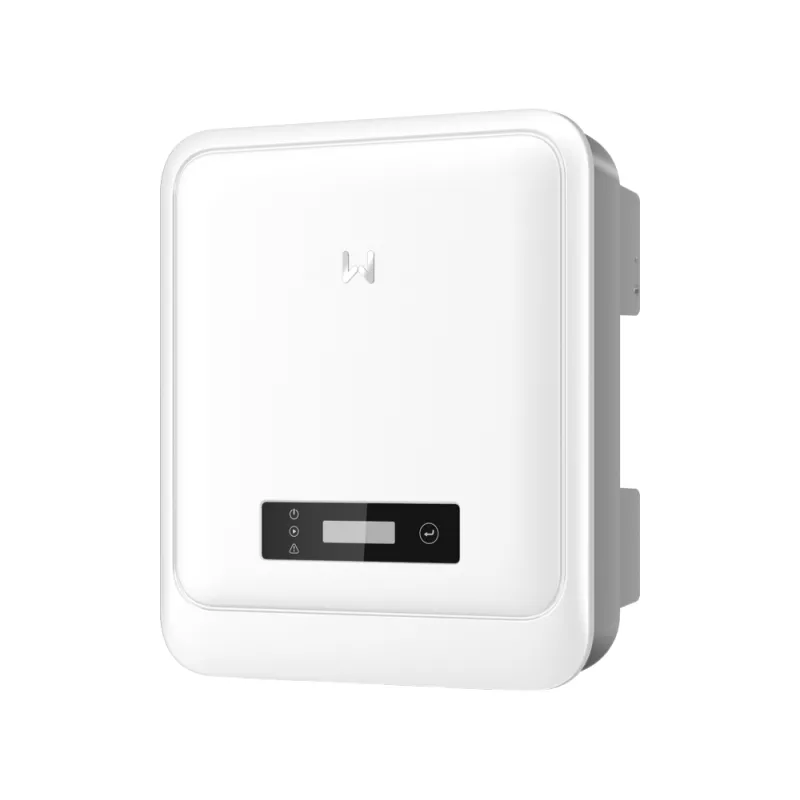

Solar Inverter 6KW Goodwe GW6000D-DNS-30 Grid Tied Single Phase
The GoodWe DNS G3 Series is a single-phase inverter designed for residential applications, offering enhanced energy efficiency and user-friendly features.
Key Features:
- High Efficiency: Achieves a maximum efficiency of 97.9%, ensuring optimal energy conversion for residential solar systems.
- Advanced MPPT Technology: Equipped with two Maximum Power Point Trackers (MPPTs), it allows for flexible system design and improved energy harvest, even with varying roof orientations.
- High Current Input: Supports up to 16A input current per string, making it compatible with high-power PV modules.
- DC Input Oversizing: Allows for 150% DC input oversizing and 110% AC output overloading, maximizing power output under diverse solar radiation conditions.
- Quiet Operation: Features a fanless design, operating at noise levels below 25 dB, ensuring minimal disturbance in residential settings.
- Enhanced Safety: Offers optional Arc Fault Circuit Interrupter (AFCI) and Type II Surge Protection Devices (SPD) on both AC and DC sides, protecting the system from electrical fires and lightning hazards.
- Smart Home Integration: Compatible with SG-ready heat pumps and supports multiple communication protocols, including Modbus RTU and Sunspec, facilitating seamless integration into smart home systems.
- 24/7 Load Monitoring: With GoodWe HomeKit 1000, users can monitor load consumption around the clock, enabling effective energy management.
| MODEL | GW6000D-DNS-30 |
|---|---|
PV String Input Data |
|
| Max. Input Voltage (V) | 600 |
| MPPT Operating Voltage Range (V) | 40-560 |
| Start-up Voltage (V) | 50 |
| Nominal Input Voltage (V) | 360 |
| Max. Input Current per MPPT (A) | 16 |
| Max. Short Circuit Current per MPPT (A) | 23 |
| Number of MPP Trackers | 2. |
| Number of Strings per MPPT | 1 |
AC Output Side |
Solar Inverter 6KW Goodwe GW6000D-DNS-30 |
| Nominal Output Power (W) | 6000 |
| Nominal Output Apparent Power (VA) | 6000 |
| Max. AC Active Power (W) | 6600 |
| Max. AC Apparent Power (VA) | 6600 |
| Nominal Output Voltage (V) | 220 / 230 / 240 |
| Output Voltage Range (V) | 196 ~ 311 (according to local standard) |
| Nominal AC Grid Frequency (Hz) | 50/60. |
| AC Grid Frequency Range (Hz) | 45 ~ 55 / 55 ~ 65 |
| Max. Output Current (A) | 28.8 |
| Max. Efficiency | 97.9% |
| Euro Efficiency | 97.4%. |
Equipment Protection |
|
| PV String Current Monitoring | Integrated |
| PV Insulation Resistance Detection | Integrated |
| Residual Current Monitoring | Integrated |
| PV Reverse Polarity Protection | Integrated |
| Anti-islanding Protection | Integrated |
| AC Overcurrent Protection | Integrated |
| AC Short Circuit Protection | Integrated. |
| AC Overvoltage Protection | Integrated . |
| DC Switch | Integrated . |
| DC Surge Protection | Type III (Type II Optional). |
| AC Surge Protection | Type III (Type II Optional). |
| Communication | RS485, WiFi, LAN or 4G or Bluetooth (Optional) |
| Operating Temperature Range | -25 to +60℃ |
| Relative Humidity | 0~100% |
| Max. Operating Altitude (m) | 4000 |
| Dimensions (W/H/D) | 350 × 410 × 143mm (Excluding Connectors and Brackets) |
| Weight | 13.4kg |
| Noise | <25 dB(A) |
| Cooling Method | Natural Convection |
| Operating temperature range | –40 °C~60 °C (> 45°C, derating). |
| Inverter Topology | Non-isolated |
| Self-consumption at Night (W) | <3. |
| Ingress Protection(IP) Rating | IP66 |
| Warranty | 15 Years. |
| DC Connector | MC4 (4 ~ 6mm²). |
| AC Connector | Plug and play connector (Max. 6mm²) |
