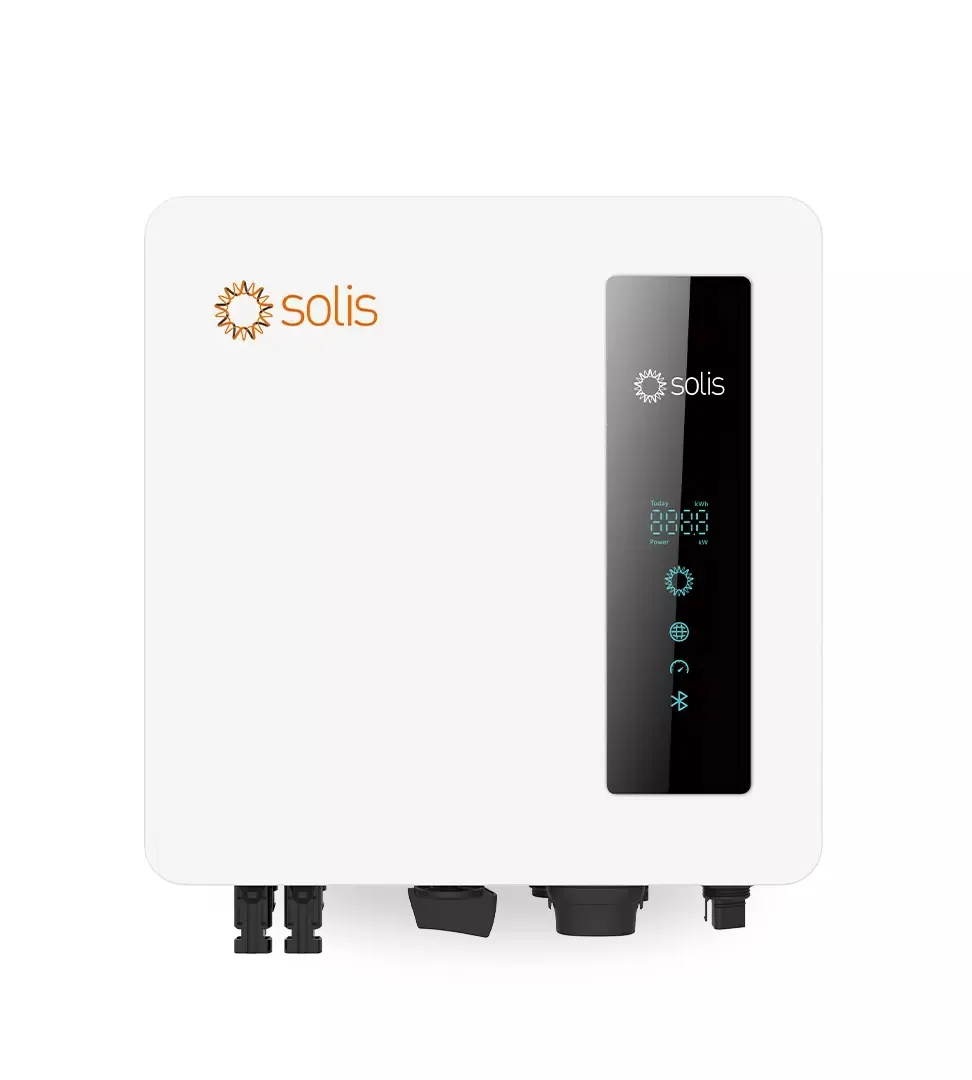

Solis S6-GR1P6K-S Grid-connected and Single-Phase Inverter

Name: Solis S6-GR1P6K-S Grid-connected and Single-Phase Inverter
SKU: S6-GR1P6K-S
Availability: InStock

$532.00

Brand Name:Solis

Model: S6-GR1P6K-S

Type: Single-phase

SKU: S6-GR1P6K-S Category: Solar Inverter

MODEL	S6-GR1P6K-S
MAX. DC POWER	9 kW
MAX. DC VOLTAGE(VDC)	550V
START VOLTAGE	100V
NOMINAL VOLTAGE	330V
MPP VOLTAGE RANGE	90 – 550 V
NO. OF MPP TRACKERS	2/2
MAX INPUT CURRENT	16 A / 16 A
MAX. SHORT-CIRCUIT CURRENT	22 A / 22 A
RATED OUTPUT POWER	6kW
MAX. APPARENT OUTPUT POWER	6 kVA
MAX. OUTPUT POWER	6 kW
RATED GRID VOLTAGE	1/N/PE, 220 V/230 V
RATED GRID FREQUENCY	50 Hz/ 60 Hz
RATED GRID OUTPUT CURRENT	27.3 A / 26.1 A
MAX. OUTPUT CURRENT	27.3 A
POWER FACTOR	> 0.99 (0.8 leading – 0.8 lagging)
THDI	< 3%.
MAX.EFFICIENCY	97.7%
EUROPEAN EFFICIENCY	97.1%
DC REVERSE POLARITY PROTECTION	yes
SHORT CIRCUIT PROTECTION	yes
OUTPUT OVER CURRENT PROTECTION	yes
SURGE PROTECTION	yes
GRID MONITORING	yes
ANTI-ISLANDING PROTECTION	yes
TEMPERATURE PROTECTION	yes
MULTI PEAK SCAN	yes
INTEGRATED AFCI 2.0	Optional
INTEGRATED DC SWITCH	yes.
DIMENSIONS (W × H × D)	330 × 371 × 161 mm.
WEIGHT	8.9 kg
TOPOLOGY	Transformerless
SELF-CONSUMPTION (NIGHT)	< 1 W
OPERATING AMBIENT TEMPERATURE RANGE	-25 ~ +60°C
RELATIVE HUMIDITY	0 – 100%
INGRESS PROTECTION	IP66.
NOISE EMISSION (TYPICAL)	< 20 dB(A)
COOLING CONCEPT	Natural cooling with internal fan.
MAX. OPERATION ALTITUDE	4000 m
SAFETY / EMC STANDARD	IEC/EN 62109-1/-2 and IEC/EN 61000-6-2/-3.
DC CONNECTION	MC4 connector
AC CONNECTION	Quick connection plug
DISPLAY	LED digital display or Bluetooth + APP
COMMUNICATION	RS485 USB, Optional: Wi-Fi and GPRS
