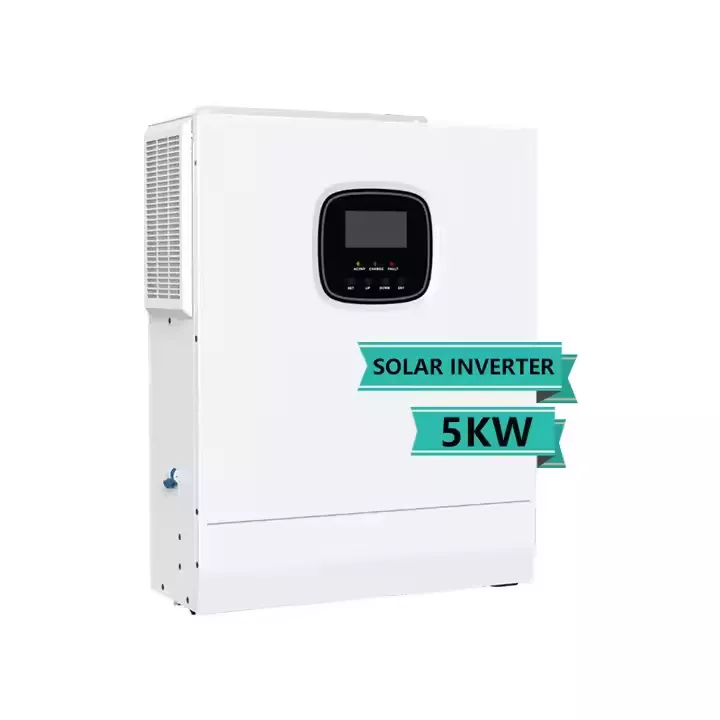

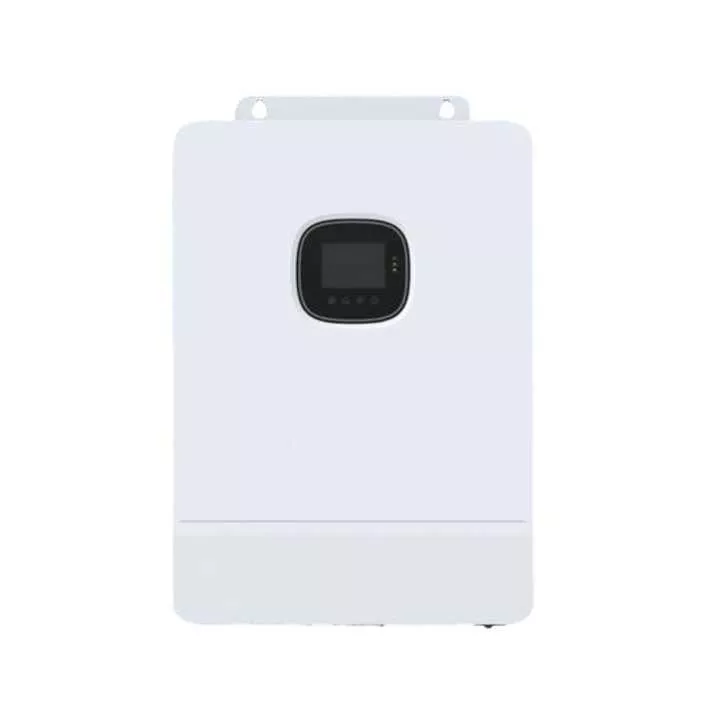

SRNE HSI-5000U Off-grid Single Phase Inverter

Name: SRNE HSI-5000U Off-grid Single Phase Inverter
SKU: HSI-5000U
Availability: InStock

$520.00

Brand Name: SRNE

Model: HSI-5000U

Type: Off-grid Single Phase Solar Inverter

SKU: HSI-5000U Category: Solar Inverter

Efficiency
- Advanced MPPT with up to 99.9% efficiency for optimal energy utilization.
Safety
- Integrated software and hardware security protection for enhanced safety.
- Certified with multiple safety approvals to ensure reliable operation.
All-in-One Functionality
- Supports Li-ion battery BMS communication for seamless integration and control.
Reliability
- Delivers high-quality pure sine wave AC power output.
- Built with an IP65 protection degree, ensuring durability in various environments.
User-Friendly Design
- Industrial design with a modern aesthetic look that complements installation spaces.
- Easy to install and simple to operate, reducing setup time and effort.

MODEL	HSI-5000U
INVERTER OUTPUT
RATED OUTPUT POWER	5,000W
MAX. PEAK POWER	11,000VA
RATED OUTPUT VOLTAGE	120Vac（L/N/PE Single-phase）
LOAD CAPACITY OF MOTORS	4HP
RATED AC FREQUENCY	50/60HZ
PV INPUT	HSI-3000U
NUMBER OF MPPT	1
MAX. PV ARRAY POWER	6000W
MAX. INPUT CURRENT	22A
INPUT VOLTAGE RANGE	90～140Vac
FREQUENCY RANGE	50/60Hz
BYPASS OVERLOAD CURRENT	40A
BATTERY
BATTERY TYPE	Lead-acid / Li-on / User-defined
RATED BATTERY VOLTAGE	48v
MAX. PV CHARGING CURRENT	80A
MAX. MAINS CHARGING CURRENT	40A
VOLTAGE RANGE	40～60Vdc
MAX. HYBRID CHARGING CURRENT	80A
GENERAL
Dimension	426322126mm
WEIGHT	11.6kg (25.57lb)
Protection Degree	IP20, only indoor
Noise	≤60dB
Cooling Method	18 Months
Warranty	RS485 / CAN / USB / Dry contact.
MPPT TRACKING EFFICIENCY	99.9%
Max. Battery Inverter Efficiency	92%
EMBEDDED INTERFACES	RS485 / USB / Dry contact
EXTERNAL MODULES（OPTIONAL）	Wi-Fi / GPRS.
Safety	CE(IEC 62109-1)/CETL(UL1741 C22.2 NO.107.1)/FCC/SAA
EMC	EN61000
RoHS	Yes
