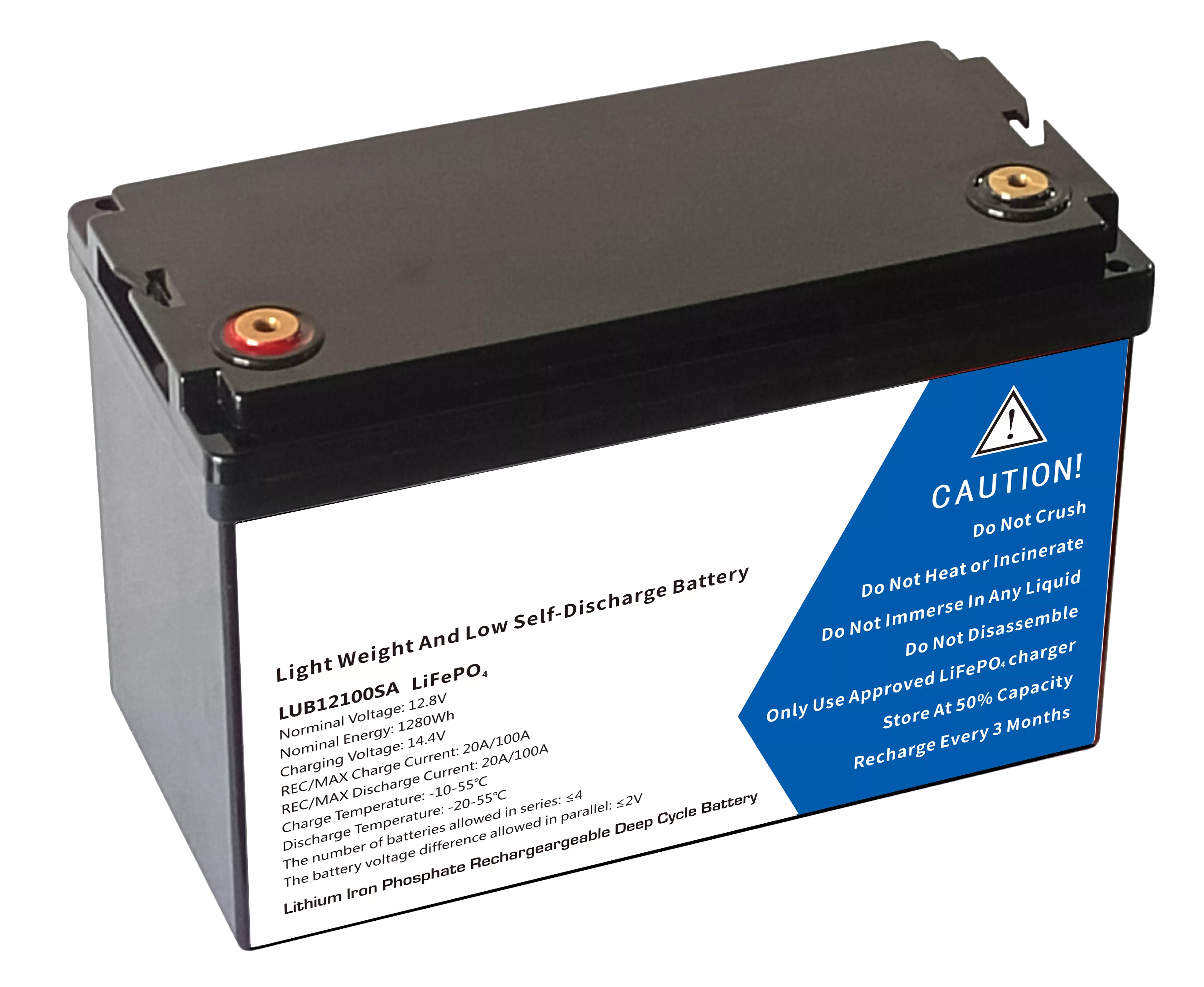

12.8V 100Ah LiFePO4 Battery Lithium-ion

Name: 12.8V 100Ah LiFePO4 Battery Lithium-ion
SKU: BAU12100
Availability: InStock

$145.50

Model: BAU12100

Battery Type: LiFePO4 Battery

Rated voltage（v）: 12.8V

Rated capacity(Ah/10hr) :100AH

SKU: BAU12100 Category: LiFePO4 Battery

CONDITION	New
PRODUCT NAME:	12.8V 100Ah LiFePO4 Battery
MODEL TYPE:	BAU12100
BATTERY TYPE:	LiFePO4 Battery
NOMINAL VOLTAGE:	12.8v
NOMINAL CAPACITY:	100ah
NOMINAL ENERGY:	1280Wh
DIMENSIONS:	330mm170mm217mm
PACKAGE SIZE:	345mm187mm260mm
GROSS WEIGHT:	10.6 ± 3% kg
NET WEIGHT:	10.3± 3% kg
SHELL:	ABS
CYCLE LIFE:	25℃ 0.5C 80%DOD ≥ 3000 times
SELF-DISCHAGE RATE:	25℃, ≤3%, every month
CHARGE MODE:	CC/CV
REC CHARGE/DISCHARGE RATE:	20A
REC CHARGE/DISCHARGE VOLTAGE:	14.4v
MAX CHARGE:	100A
MAX PULSE CHARGE:	100A
END-OFF VOLTAGE:	11.2V
DISCHARGE TEMPERATURE:	-20°C – +55°C
CHARGE TEMPERATURE:	-10°C – +55°C
IP GRADE:	IP6X
WARRANTY:	3 Years

Cautions：

1.The number of batteries allowed in series ≤ 4.

2.The battery voltage difference allowed in parallel ≤ 2V.
