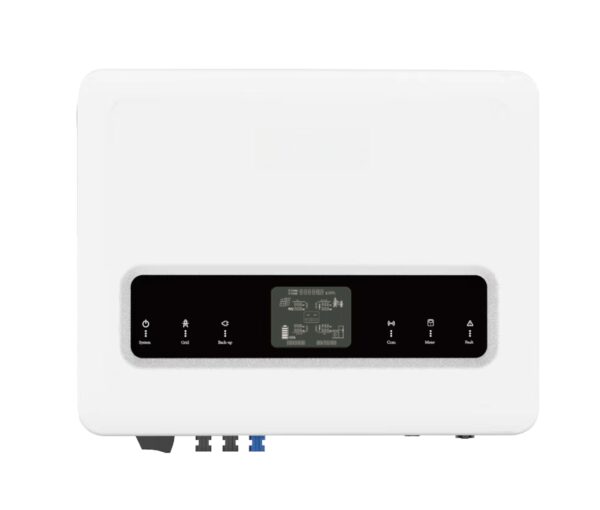

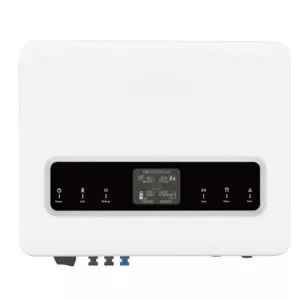

6KW Three Phase Hybrid Inverter

$1,051.00

SKU: BAU-EPH6KTL Category: Solar Inverter

MODEL	BAU-EPH6KTL
INPUT(DC)
MAX. DC POWER	90000W
MAX. DC VOLTAGE(VDC)	1000
MPPT voltage range	200~850 Vd.c
MAX. INPUT CURRENT(A)	13A/13A
MAX. SHORT MPPT	18A/18A
NUMBER OF MPP TRACKERS	2
STRINGS PER MPP TRACKER	1
OUTPUT (AC)
NOMINAL OUTPUT POWER	6000W
MAX. OUTPUT POWER	7000W
NOMINAL OUTPUT VOLTAGE/RANGE (V)	400Vac/ 380V
AC CONNECTION WITH PE	Three Phase
Nominal AC output	12A
CURRENT DISTORTION(THDI)	＜3%
EFFICIENCY
MAXIMUM CONVERSION EFFICIENCY	98.2%
EUROPEAN EFFICIENCY	97.5%
MPPT EFFICIENCY	99.9%
SAFETY AND PROTECTION
DC REVERSE-POLARITY PROTECTION	yes
OVERVOLTAGE PROTECTION	yes
SHORT CIRCUIT PROTECTION	yes
LEAKAGE CURRENT PROTECTION	yes
GRID MONITORING	yes
DC/AC SIDE SPD	yes
GENERAL PARAMETERS
DIMENSIONS	516/427/184mm
WEIGHT	26kg
EMBEDDED DC SWITCH	Optional
NIGHT POWER CONSUMPTION (W)	＜0.2
ISOLATION TYPE	Transformerless
PROTECTION DEGREE	IP65
OPERATING TEMPERATURE RANGE	-25℃~+ 60℃
COOLING CONCEPT	Smart Cooling
ACOUSTIC NOISE LEVEL (DB)	＜25
DISPLAY	Graphic LCD
COMMUNICATION INTERFACE	RS485/WIFI/GPRS/CAN
WARRANTY	Standard 5 years
