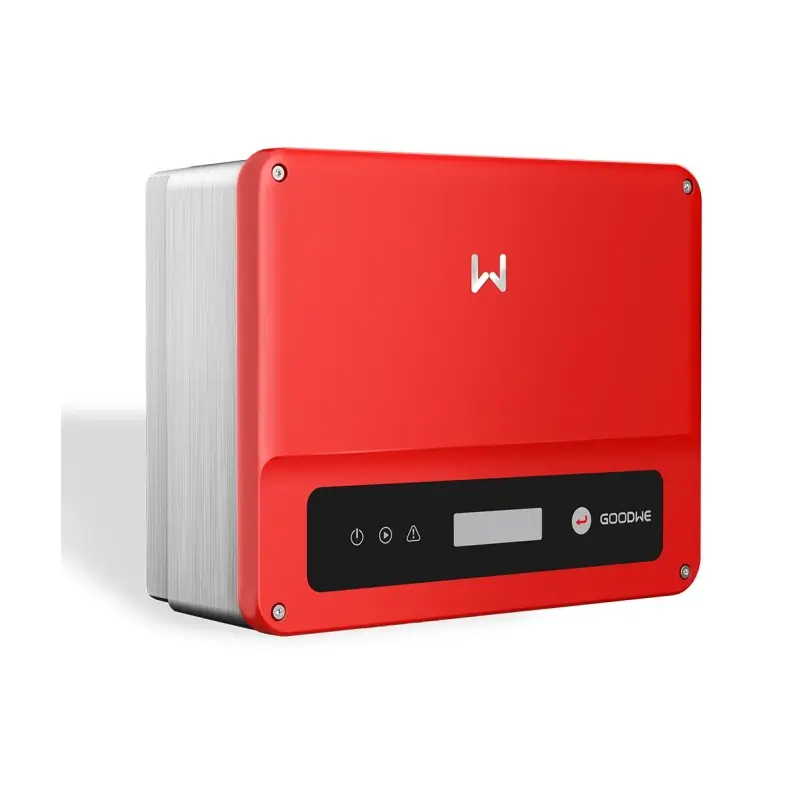

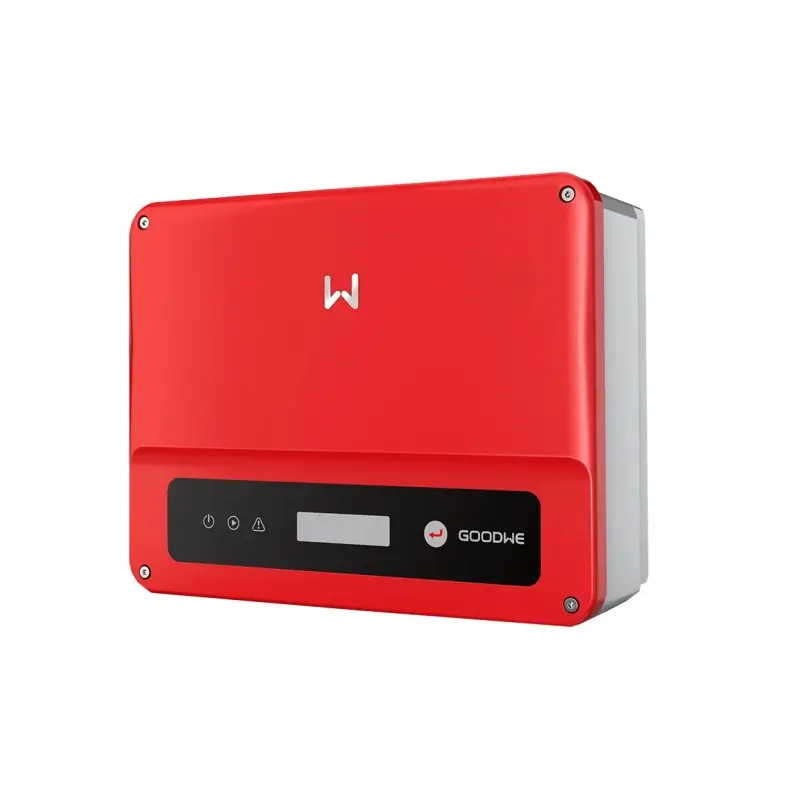

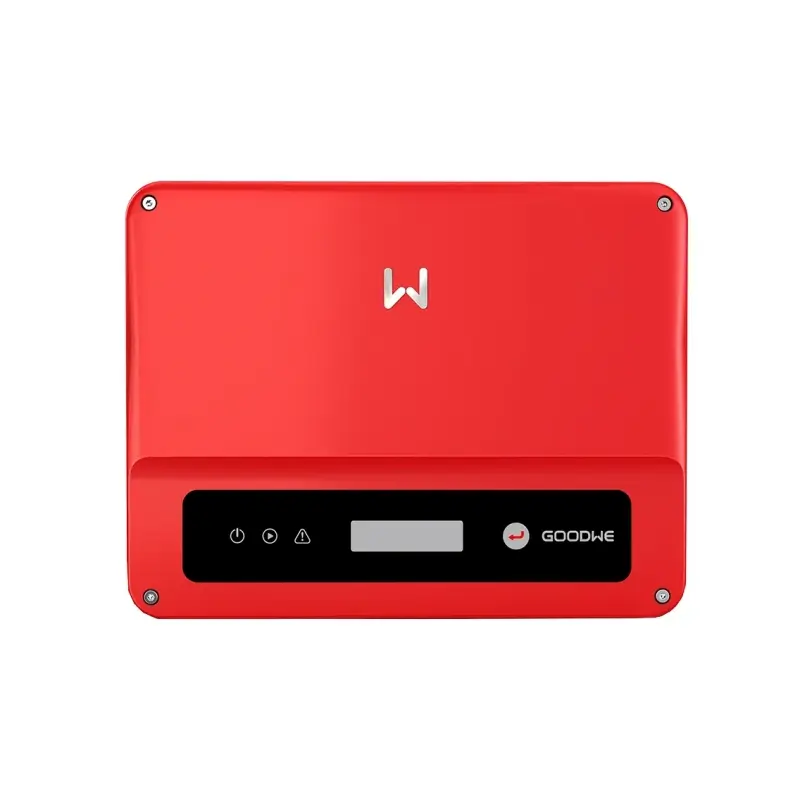

Goodwe Solar Inverter 3KW GW3000-XS-30 On Grid Single Phase
Goodwe Solar Inverter 3KW GW3000-XS-30 On Grid Single Phase
Goodwe Solar Inverter 3KW GW3000-XS-30 On Grid Single Phase
$299.00
Brand Name: Goodwe
Model: GW3000-XS-30
Type: On Grid Single Phase Solar Inverter
Goodwe Solar Inverter 3KW GW3000-XS-30 On Grid Single Phase
- High Efficiency
- Generous DC Input Oversizing
- Quiet Operation
- Robust Protection
- Smart Home Integration
| MODEL | GW3000-XS-30 |
|---|---|
PV String Input Data |
|
| Max. Input Voltage (V) | 600 |
| MPPT Operating Voltage Range (V) | 40-450 |
| Start-up Voltage (V) | 50 |
| Nominal Input Voltage (V) | 360 |
| Max. Input Current per MPPT (A) | 16 |
| Max. Short Circuit Current per MPPT (A) | 25 |
| Number of MPP Trackers | 1. |
| Number of Strings per MPPT | 1 |
AC Output Side |
Goodwe Solar Inverter 3KW GW3000-XS-30 |
| Nominal Output Power (W) | 3300 |
| Nominal Output Apparent Power (VA) | 3300 |
| Max. AC Active Power (W) | 3300 |
| Max. AC Apparent Power (VA) | 3300 |
| Nominal Output Voltage (V) | 220 / 230 / 240, L / N / PE |
| Output Voltage Range (V) | 154 ~ 288 (according to local standard) |
| Nominal AC Grid Frequency (Hz) | 50/60. |
| AC Grid Frequency Range (Hz) | 45 ~ 55 / 57 ~ 63 |
| Max. Output Current (A) | 15.0 |
| Max. Efficiency | 97.6% |
| Euro Efficiency | 97.1%. |
Equipment Protection |
|
| PV String Current Monitoring | Integrated |
| PV Insulation Resistance Detection | Integrated |
| Residual Current Monitoring | Integrated |
| PV Reverse Polarity Protection | Integrated |
| Anti-islanding Protection | Integrated |
| AC Overcurrent Protection | Integrated |
| AC Short Circuit Protection | Integrated. |
| AC Overvoltage Protection | Integrated . |
| DC Switch | Integrated . |
| DC Surge Protection | Type III (Type II Optional). |
| AC Surge Protection | Type III (Type II Optional). |
| Communication | RS485, WiFi, LAN or 4G or Bluetooth (Optional) |
| Operating Temperature Range | -25 to +60℃ |
| Relative Humidity | 0~100% |
| Max. Operating Altitude (m) | 4000 |
| Dimensions (W/H/D) | 306 × 218 × 119mm (Excluding Connectors and Brackets) |
| Weight | 4.6kg |
| Noise | <20 dB(A) |
| Cooling Method | Natural Convection |
| Operating temperature range | –40 °C~60 °C (> 45°C, derating). |
| Inverter Topology | Non-isolated |
| Self-consumption at Night (W) | <3. |
| Ingress Protection(IP) Rating | IP66 |
| Warranty | 15 Years. |
| DC Connector | MC4 (4 ~ 6mm²). |
| AC Connector | Plug and Play Connector. |
Download:
Goodwe Solar Inverter 3KW GW3000-XS-30 On Grid Single Phase Datasheet
