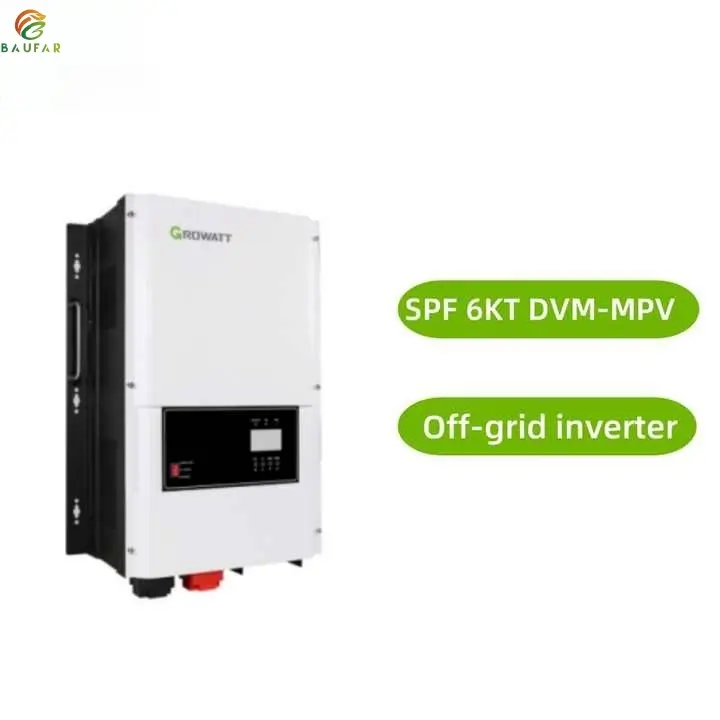

Growatt 6KW Off-grid Inverter SPF 6000T DVM-MPV
- Low frequency inverter 120/240Vac Split Phase output
- Integrated MPPT charge controller
- Optional WIFI/ GPRS remote monitoring
- Built-in pure copper low frequency transformer
- Configurable grid or solar input priority
| MODEL | SPF 6000T DVM-MPV |
|---|---|
| Battery Voltage | 48VDC |
| Battery Type | Lithium/Lead-acid. |
| INVERTER OUTPUT | |
| Rated Power | 6KW. |
| Surge Rating | 18KW |
| Waveform | Pure sine wave/ same as input (bypass mode). |
| Nominal Output Voltage RMS | 104-110-115-120/208-220-230-240VAC(optional). |
| Output Frequency | 50Hz/60Hz +/-0.3 Hz. |
| Inverter Efficiency(Peak) | >85%. |
| Transfer Time | 10ms(max) |
| SOLAR CHARGER | |
| Maximum PV Charge Current | 80A |
| Maximum PV Array Power | 5000W. |
| Number of independent MPP trackers | 1/1. |
| MPPT Range @ Operating Voltage(VDC) | 60~145VDC |
| Maximum PV Array Open Circuit Voltage | 150VDC. |
| Maximum Efficiency | >98% |
| AC INPUT | |
| Voltage | 240VAC |
| Selectable Voltage Range | 184~272VAC(UPS);154~272VAC(APL) |
| Frequency Range | 50Hz/60Hz (Auto sensing) |
| Max. Charging Current | 60A. |
| MECHANICAL SPECIFICATIONS | |
| Protection Degree | IP20 . |
| Dimensions (W/H/D) | 360/540/218mm |
| Weight | 52kg. |
| OPERATING ENVIRONMENT | |
| Operation Temperature Range | 0°C to 45°C |
