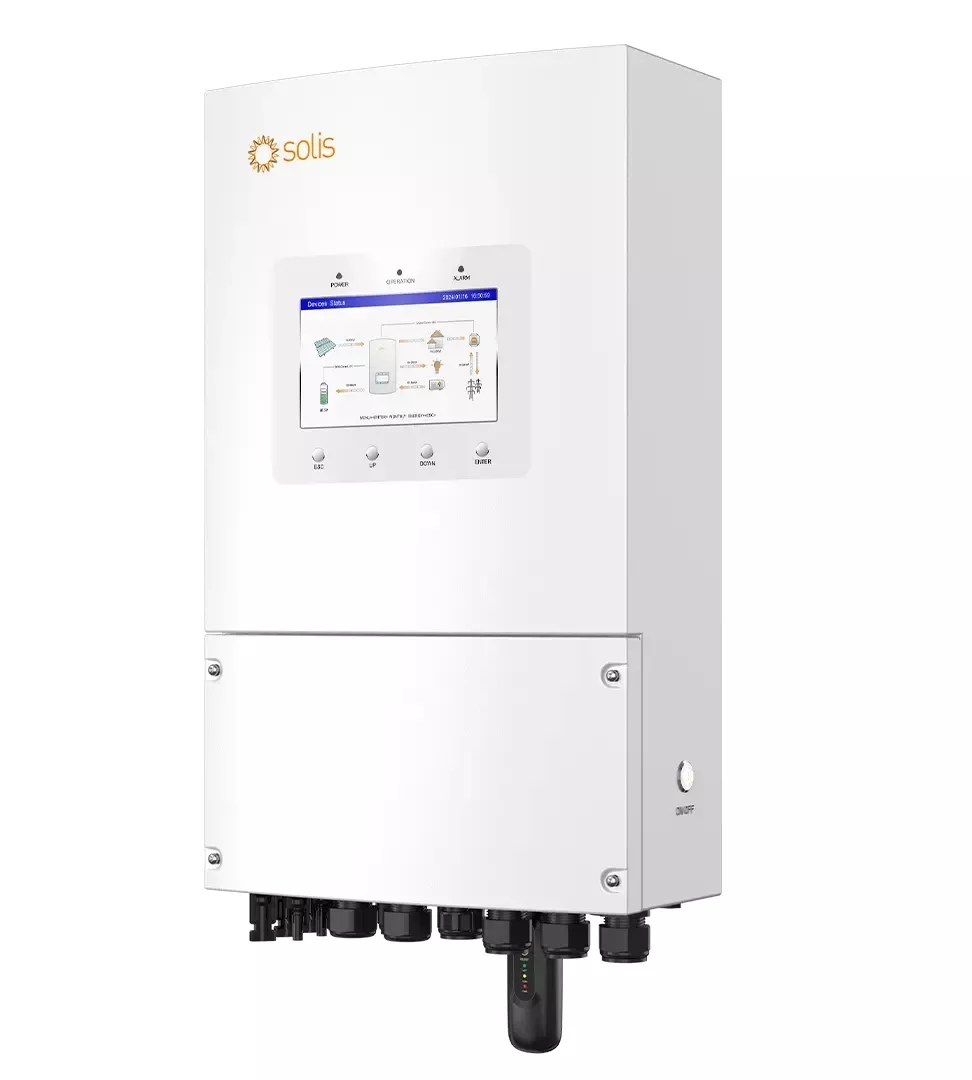

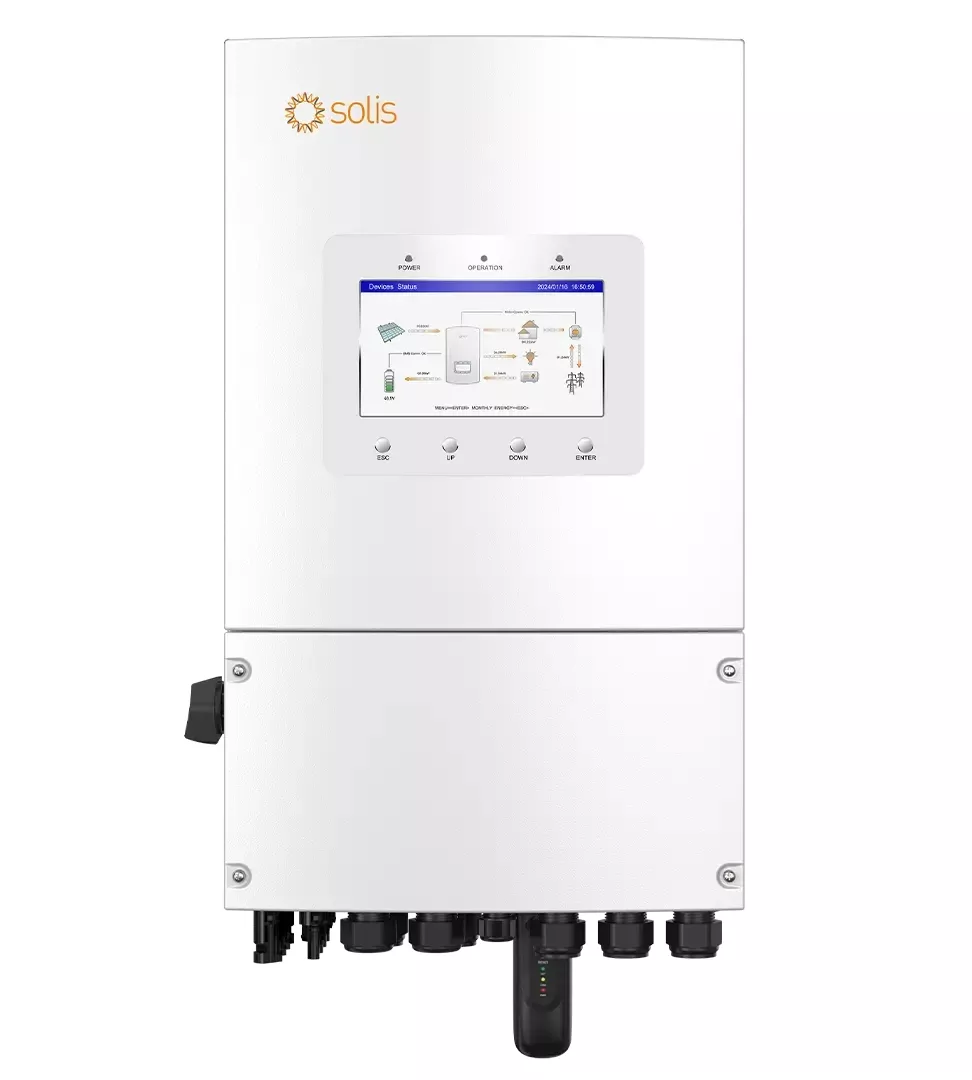

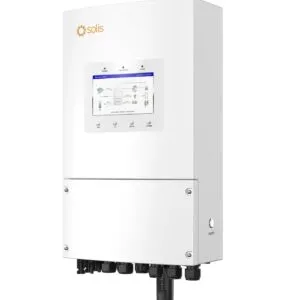

Solis S6-EH1P8K-L-PLUS Hybrid and Single-Phase Inverter
- 10 seconds of 200% overload capability
- Multiple inverters can operate together to form a microgrid
- Generator-compatible to extend backup duration during grid power outage.
- Supports dual backup ports for intelligent control of critical and non-critical loads.
| MODEL | S6-EH1P8K-L-PLUS |
|---|---|
| MAX. DC POWER | 16kW |
| MAX. DC VOLTAGE(VDC) | 500 V |
| START VOLTAGE | 90 V |
| NOMINAL VOLTAGE | 330 V |
| MPP VOLTAGE RANGE | 90 – 435 V |
| NO. OF MPP TRACKERS | 2 / 4 |
| MAX INPUT CURRENT | 32 A / 32 A |
| MAX. SHORT-CIRCUIT CURRENT | 40 A / 40 A |
| BATTERY TYPE | Li-ion / Lead-acid |
| BATTERY VOLTAGE RANGE | 40 – 60 V |
| MAX. CHARGE / DISCHARGE POWER | 8 kW |
| MAX. CHARGE / DISCHARGE CURRENT | 190 A |
| COMMUNICATION | CAN / RS485 |
| RATED OUTPUT POWER | 8 kW |
| MAX. OUTPUT POWER | 8kVA |
| RATED GRID VOLTAGE | L/N/PE 220 V / 230 V |
| RATED GRID FREQUENCY | 50 Hz / 60 Hz. |
| RATED GRID OUTPUT CURRENT | 36.4 A / 34.8 A |
| MAX. OUTPUT CURRENT | 36.4 A / 34.8 A. |
| POWER FACTOR | > 0.99 (0.8 leading – 0.8 lagging) |
| THDI | <2% |
| INPUT VOLTAGE RANGE | 187 – 253 V |
| MAX. INPUT CURRENT | 50A |
| FREQUENCY RANGE | 45 – 55 Hz / 55 – 65 Hz |
| RATED OUTPUT POWER | 8 kW |
| MAX. APPARENT OUTPUT POWER | 2 times of rated power, 10 s. |
| BACK-UP SWITCH TIME | < 4 ms |
| RATED OUTPUT VOLTAGE | L/N/PE, 220 V / 230 V. |
| RATED FREQUENCY | 50 Hz / 60 Hz. |
| RATED OUTPUT CURRENT | 22.8 A / 21.8 A. |
| MAX. AC PASSTHROUGH CURRENT | 40 A. |
| THDV (@LINEAR LOAD) | < 2% |
| MAX.EFFICIENCY | 96.2% |
| EUROPEAN EFFICIENCY | 96.1% |
BAT CHARGED BY PV / AC MAX. EFFICIENCY |
95.3% / 93.9% |
| BAT DISCHARGED TO AC MAX. EFFICIENCY | 93.8% |
| DC REVERSE POLARITY PROTECTION | yes |
| GROUND FAULT MONITORING | yes |
| INTEGRATED AFCI 2.0 | Optional |
| PROTECTION CLASS / OVER VOLTAGE CATEGORY | I / II (PV and BAT) III (MAINS and BACKUP and GEN). |
| DIMENSIONS (W × H × D) | 335 × 560 × 253 mm |
| WEIGHT | 23.5 kg |
| TOPOLOGY | High frequency isolation (for battery) |
| SELF-CONSUMPTION (NIGHT) | < 1 W |
| OPERATING AMBIENT TEMPERATURE RANGE | -40 ~ +60°C |
| INGRESS PROTECTION | IP66 |
| NOISE EMISSION (TYPICAL) | < 60 dB(A) |
| COOLING CONCEPT | Intelligent fan-cooling |
| MAX. OPERATION ALTITUDE | 3000 m |
| SAFETY / EMC STANDARD | IEC/EN 62109-1/-2, EN 61000-6-2/-3. |
| DC CONNECTION | MC4 plug (PV port) / Terminal Block (BAT port) |
| AC CONNECTION | Terminal Block |
| DISPLAY | 7.0″ LCD display & Bluetooth + APP. |
| COMMUNICATION | RS485, CAN, Optional: Wi-Fi, GPRS, LAN. |
Grid connection standard
NRS 097-2-1/ IEC 62116 / IEC 61727 / IEC 60068, IEC 61683. EN 50530 / MEA / PEA / NBR16149 / NBR 16150.
