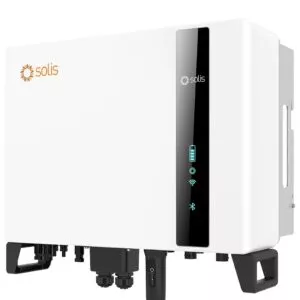

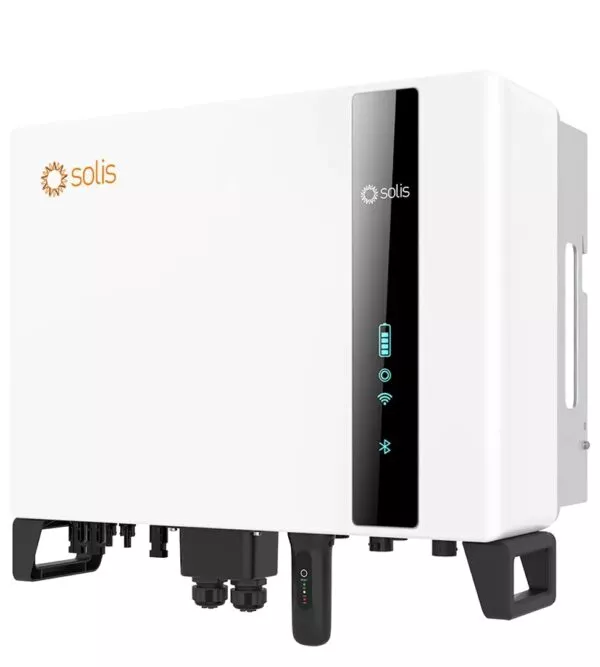

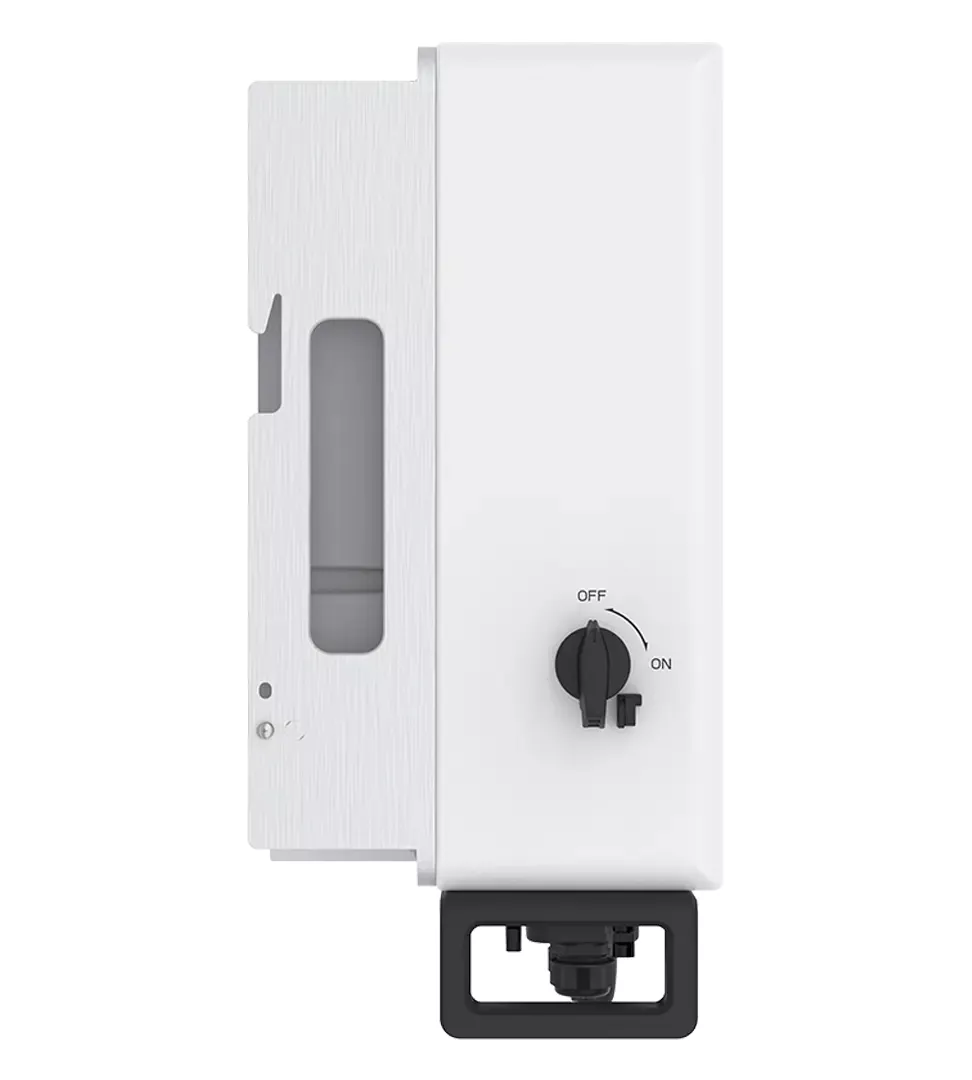

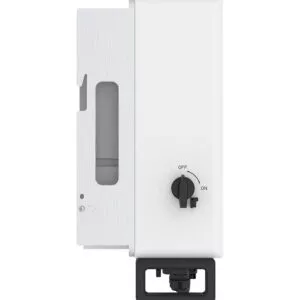

Solis S6-EH3P5K2-H High Voltage Energy Storage Inverter
- Industry leading 50A/10kW max charge/discharge rating
- Automatic UPS switching
- Supports Peak Shaving Mode
- Pre-made Battery, Meter and CAN cabling to reduce installation time
| MODEL | S6-EH3P8K2-H. |
|---|---|
| Recommended max. PV array size | 16 kW. |
| Max. usable PV input power | 12.8 kW. |
| Max. input voltage | 1000 V. |
| Start-up voltage | 160 V |
| Rated voltage | 600 V |
| MPP VOLTAGE RANGE | 200 – 850V. |
| NO. OF MPP TRACKERS | 2 / 2 |
| MAX INPUT CURRENT | 16 A / 16 A. |
| MAX. SHORT-CIRCUIT CURRENT | 24 A / 24 A. |
| BATTERY | |
| BATTERY TYPE | Li-ion |
| BATTERY VOLTAGE RANGE | 120 – 600V. |
| MAX. CHARGE / DISCHARGE CURRENT | 25 A. |
| COMMUNICATION | CAN / RS485 |
| Input AC (Grid side) | |
| RATED OUTPUT POWER | 8kW |
| RATED GRID VOLTAGE | 3/N/PE, 380 V / 400 V. |
| RATED GRID FREQUENCY | 50 Hz / 60 Hz |
| RATED GRID OUTPUT CURRENT | 12.2 A / 11.5 A |
| POWER FACTOR | > 0.99 (0.8 leading – 0.8 lagging). |
Input AC (Grid side) |
|
| THDI | <3% |
| INPUT VOLTAGE RANGE | 304 – 437 V / 320 – 460 V. |
| MAX. INPUT CURRENT | 18.2 A. |
| FREQUENCY RANGE | 45 – 55 Hz / 55 – 65 Hz. |
| RATED OUTPUT POWER | 8kW |
| MAX. APPARENT OUTPUT POWER | 12.8 kVA, 60 s. |
| BACK-UP SWITCH TIME | < 10 ms |
| RATED OUTPUT VOLTAGE | 3/N/PE, 380 V / 400 V. |
| RATED FREQUENCY | 50 Hz / 60 Hz. |
| RATED OUTPUT CURRENT | 12.2 A / 11.5 A. |
| THDV (@LINEAR LOAD) | < 2% |
| MAX.EFFICIENCY | 97.50% |
| EUROPEAN EFFICIENCY | 97.41% |
| Bat charged by PV max. efficiency | 98.22% |
| BAT DISCHARGED TO AC MAX. EFFICIENCY | 97.50% |
| DC REVERSE POLARITY PROTECTION | yes. |
| Anti-islanding protection | yes. |
| INTEGRATED AFCI 2.0 | Optional. |
| Short circuit protection | yes |
| Integrated DC switch | Yes |
| DC reverse-polarity protection | Yes |
| PV over voltage protection | Yes |
| Battery reverse protection | Â Yes |
| DIMENSIONS (W × H × D) | 600 × 500 × 230 mm. |
| WEIGHT | 30.2 kg |
| TOPOLOGY | Transformerless |
| SELF-CONSUMPTION (NIGHT) | < 25W |
| OPERATING AMBIENT TEMPERATURE RANGE | -25 ~ +60°C. |
| INGRESS PROTECTION | IP66. |
| NOISE EMISSION (TYPICAL) | < 46.9 dB(A). |
| COOLING CONCEPT | Natural cooling |
| MAX. OPERATION ALTITUDE | 4000 m |
| SAFETY / EMC STANDARD | IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-3. |
| DC CONNECTION | MC4 connector |
| AC CONNECTION | Quick connection plug. |
| DISPLAY | LED indicator & Bluetooth + APP. |
| COMMUNICATION | CAN, RS485, Optional: Wi-Fi, Cellular, LAN. |
Grid connection standard
G98 or G99, VDE-AR-N 4105/VDE V 0124, EN 50549-1, VDE 0126/UTE C 15/VFR:2019, RD 1699/RD 244/UNE 206006/ UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, TOR, EIFS 2018.2, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA and PEA
