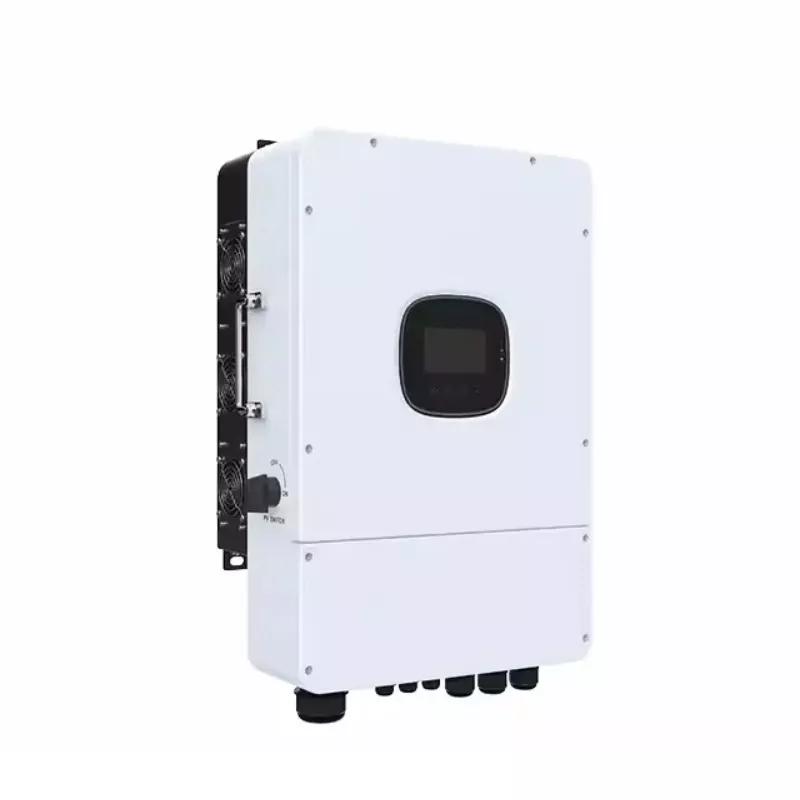

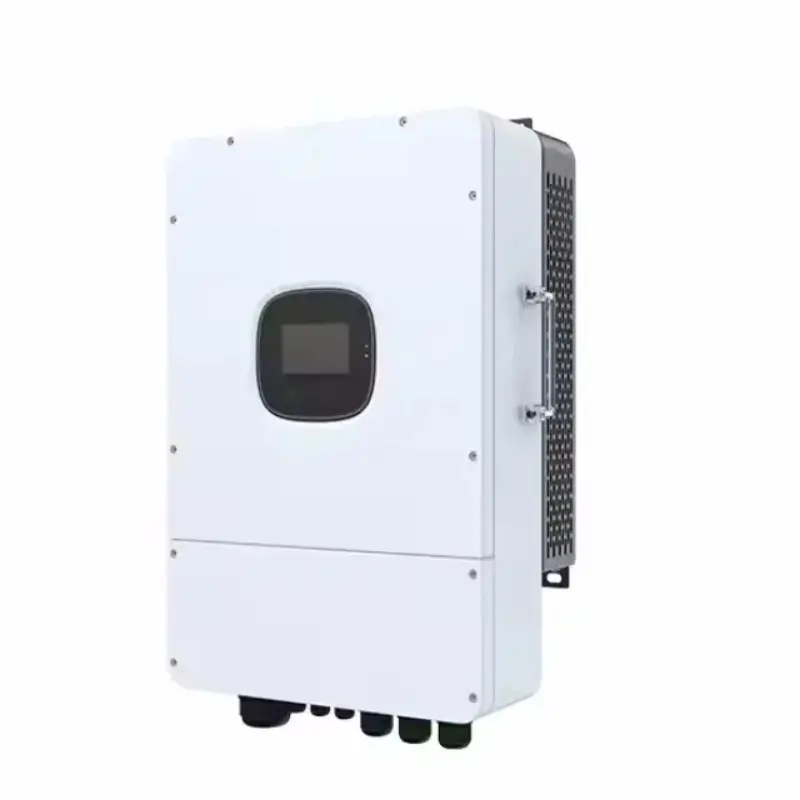

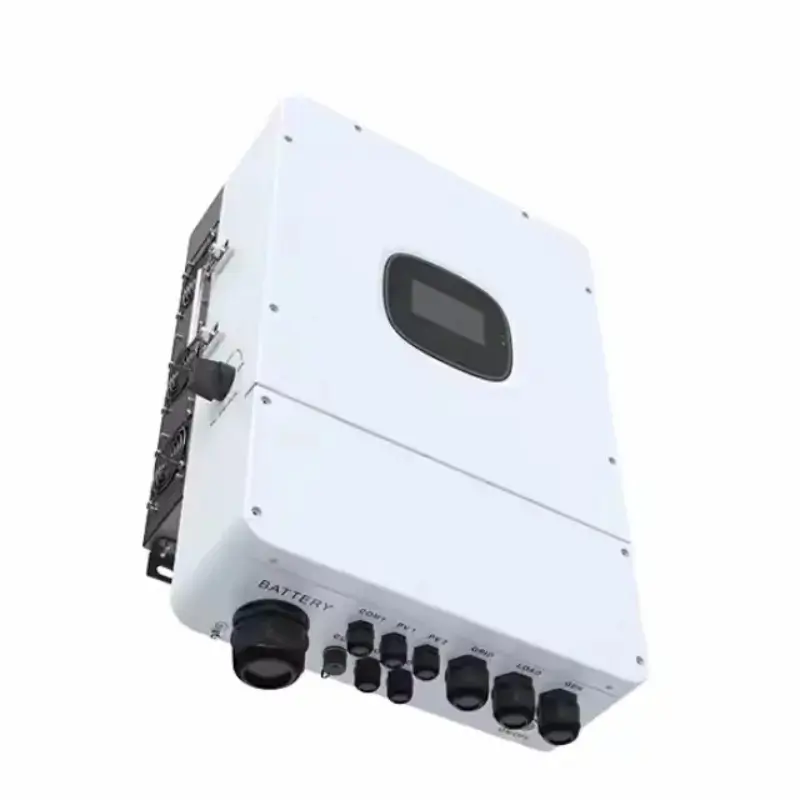

SRNE SEI-12K-UP 12kw Single Threee Phase US Hybrid Inverter

Name: SRNE SEI-12K-UP 12kw Single Threee Phase US Hybrid Inverter
SKU: SEI-12K-UP
Availability: InStock

$1,899.00

Brand Name: SRNE

Model: SEI-12K-UP

Type: Single Phase / Three Phae Hybrid Solar Inverter

SKU: SEI-12K-UP Category: Solar Inverter

MODEL	SRNE SEI-8K-UP
Inverter Output
Rated Output Power	12000w
Max. Peak Power	24000VA
Rated Output Voltage	230V AC Single Phase
Load Capacity of Motors	6HP
Rated AC Frequency	50/60HZ
PV Input
Number of MPPT	2
Max. PV Array Power	6600W+6600W
Max. Input Current	22A+22A
MPPT Operating Voltage Range	125 – 425Vdc
Battery
Battery Type	Lead-acid / Li-on / User-defined
Rated Battery Voltage	48v
Max. PV Charging Current	200A
Max. Mains Charging Current	120A
Max. Alternator Charging Current	60A
Max. Hybrid Charging Current	200A
General
Number of Parallel	1 – 6 units
Dimensions (W/H/D)	670×440×240mm
Weight	37kg
Ingress Protection(IP) Rating	IP67
Warranty	5 Years.
Embedded Interfaces	RS485 / CAN / USB / Dry contact.
