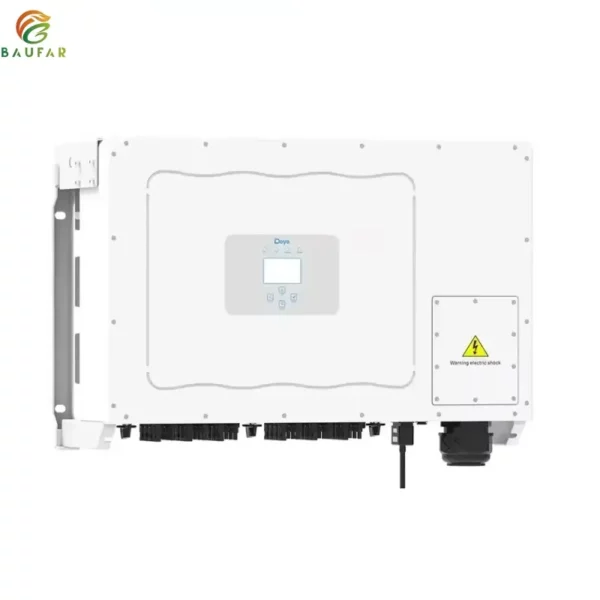

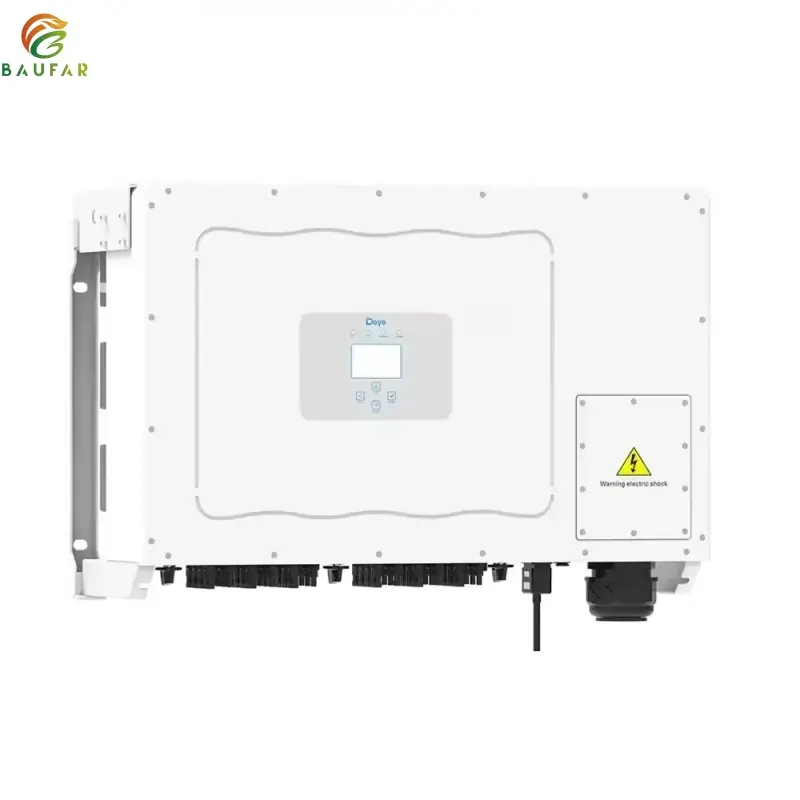

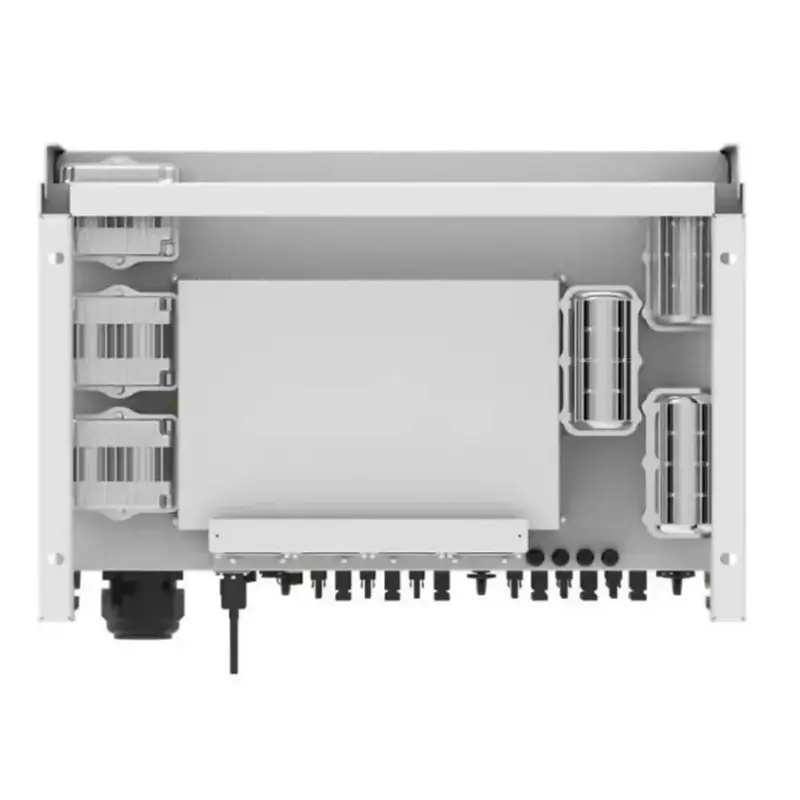

Deye SUN-120K-G01P3-EU-AM8 Three Phase 8 MPPT Inverter
- 8 MPP trackers, Max. effiffifficiency up to 98.8%
- Zero export application, VSG application
- String intelligent monitoring (optional)
- Wide output voltage range
- Anti-PID function (Optional)
- Type II DC/AC SPD
| MODEL | SUN-120K-G01P3-EU-AM8 |
|---|---|
PV String Input Data |
|
| Max PV Input Power | 180kw |
| Max PV Input Voltage | 1100v |
| Start-up Voltage | 250v |
| MPPT Voltage Range | 200-1000v |
| Rated PV Input Voltage | 600v |
| Max. Operating PV Input Current | 60+60+60+60+60+60+60+60A |
| Max. Input Short Circuit Current | 40+40+40+40+40+40+40+40A. |
| No. of MPP Trackers | 8/4+4+4+4+4+4+4+4 |
AC Output Side |
Deye SUN-120K-G01P3-EU-AM8 |
| Rated AC Input/Output Active Power | 120kW |
| Max AC Input/Output Apparent Power | 132kVa |
| Rated AC Input/Output Current | 181.9/174 |
| Max AC Input/Output Current | 200/191.4 |
| Rated Input/Output Voltage/Range | 220/380V, 230/400V 0.85Un-1.1Un |
| Grid Connection Form | 3L+N+PE |
| THDi | <3% (of nominal power). |
| DC Injection Current | <0.5%ln |
| Power Factor Adjustment Range | 0.8 leading-0.8lagging |
| Max. Efficiency | 98.8% |
| Euro Efficiency | 98.2%. |
Equipment Protection |
|
| DC Polarity Reverse Connection Protection | Yes |
| AC Output Overcurrent Protection | Yes |
| AC Output Overvoltage Protection | Yes. |
| AC Output Short Circuit Protection | Yes |
| Thermal Protection | Yes |
| DC Component Monitoring | Yes |
| Communication Interface | RS485/RS232/CAN. |
| Monitor Mode | GPRS/WIFI/Bluetooth/4G/LAN(optional) |
| Operating Temperature Range | -25 to +60℃, >45℃ Derating |
| Permissible Ambient Humidity | 0~100% |
| Permissible Altitude | 4000m |
| Dimensions (W/H/D) | 1006mm*516mm*325.5mm |
| Weight | 103kg |
| Noise | <65 dB(A) |
| Type Of Cooling | Intelligent air cooling |
| Operating temperature range | –40 °C~60 °C (> 45°C, derating). |
| Inverter Topology | Non-Isolated |
| Over Voltage Category | OVC II(DC),OVC III(AC). |
| Ingress Protection(IP) Rating | IP65 |
| Warranty | 5 Years. |
| Safety / EMC standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2. |
