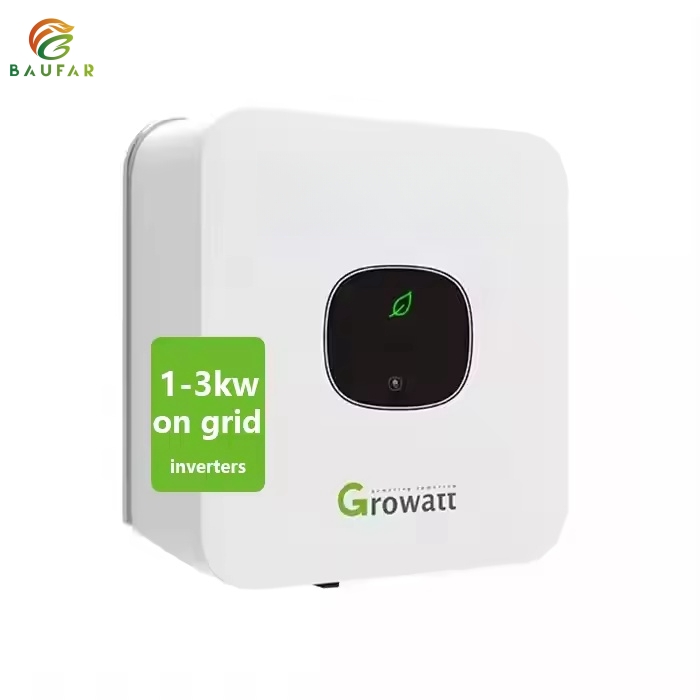

Growatt 3.3KW On-grid Inverter MIC 3300TL-X

Name: Growatt 3.3KW On-grid Inverter MIC 3300TL-X
Availability: InStock

$402.00

Brand Name:Growatt

Model: MIC 3300TL-X

Type:Single Phase

MODEL	MIC 3000TL-X
INPUT DATA (PV)
MAX. RECOMMENDED PV POWER	4290W.
START VOLTAGE	80V.
Max. DC voltage	500V.
Nominal voltage	360V.
MPP voltage range	65V-550V.
No. of MPP trackers	1
No. of PV strings per MPP tracker	1.
Max. input current per MPP tracker	13A.
OUTPUT DATA(AC)
AC NOMINAL POWER	3.3kW
MAX. AC APPARENT POWER	3.3kVa
NOMINAL AC VOLTAGE	230V (180-280V).
NOMINAL AC GRID FREQUENCY	50/60 Hz .
MAX. OUTPUT CURRENT	14.3A
ADJUSTABLE POWER FACTOR	0.8leading…0.8lagging.
THDI	<3%
AC GRID CONNECTION TYPE	Single phase.
Efficiency
Max.efficiency	97.6%.
European efficiency	97.1%.
MPPT efficiency	99.9%.
Protection devices
DC reverse polarity protection	Yes.
DC switch	Yes
AC/DC surge protection	Type III / Type III.
Insulation resistance monitoring	Yes
AC short-circuit protection	Yes
Ground fault monitoring	Yes
Grid monitoring	Yes
Anti-islanding protection	Yes
Residual-current monitoring unit	Yes
AFCI protection	Optional.
General data
Dimensions (W / H / D)	274/254/138mm
Weight	6.2kg
Operating temperature range	–25°C … +60°C.
Nighttime power consumption	< 0.5W
Topology	Transformerless.
Cooling	Natural convection
Protection degree	IP65
Relative humidity	0-100%
Altitude	4000m
DC connection	H4/MC4(Optional)
AC connection	Connector
Display	OLED+LED/WIFI+APP
Interfaces: RS485 / USB/Wi-Fi/ GPRS/ RF/LAN	Yes/Yes/Optional.
Warranty: 5 years / 10 years	Yes /Optional.

There are no reviews yet.
