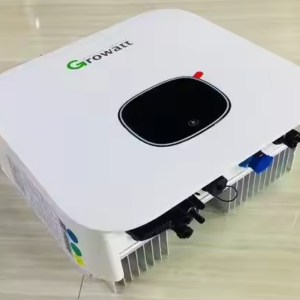

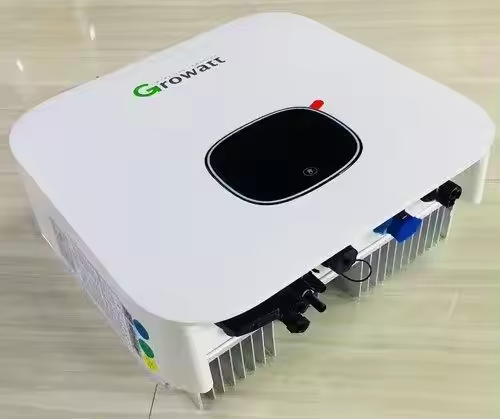

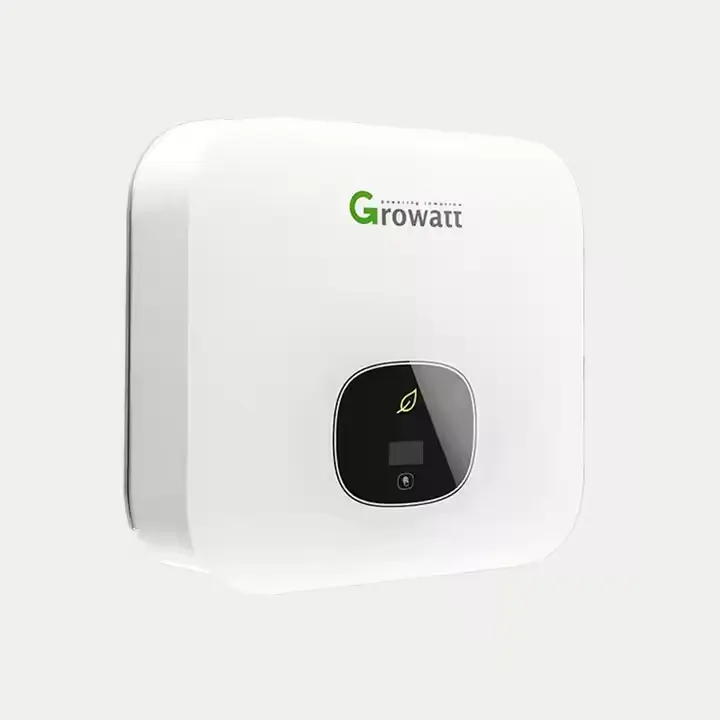

Growatt 5KW On-grid Inverter MIN 5000TL-X

Name: Growatt 5KW On-grid Inverter MIN 5000TL-X
SKU: MIN 5000TL-X
Availability: InStock

$582.00

Brand Name:Growatt

Model: MIN 5000TL-X

Type:Single Phase

SKU: MIN 5000TL-X Category: Solar Inverter

MODEL	MIN 5000TL-X
INPUT DATA (PV)
MAX. RECOMMENDED PV POWER	7000W.
START VOLTAGE	100V.
Max. DC voltage	500V.
Nominal voltage	360V.
MPP voltage range	80V-550V.
No. of MPP trackers	2.
No. of PV strings per MPP tracker	1.
Max. input current per MPP tracker	13.5A *.
OUTPUT DATA(AC)
AC NOMINAL POWER	5kW
MAX. AC APPARENT POWER	5kVa
NOMINAL AC VOLTAGE	230V (180-280V)
NOMINAL AC GRID FREQUENCY	50/60 Hz (45-55Hz/55-65 Hz) .
MAX. OUTPUT CURRENT	22.7A
ADJUSTABLE POWER FACTOR	0.8leading…0.8lagging.
THDI	<3%
AC GRID CONNECTION TYPE	Single phase.
Efficiency
Max.efficiency	98.4%.
European efficiency	97.5%
MPPT efficiency	99.9%.
Protection devices
DC reverse polarity protection	Yes.
DC switch	Yes
AC/DC surge protection	Type III / Type III.
Insulation resistance monitoring	Yes
AC short-circuit protection	Yes
Ground fault monitoring	Yes
Grid monitoring	Yes
Anti-islanding protection	Yes
Residual-current monitoring unit	Yes
AFCI protection	Optional.
General data
Dimensions (W / H / D)	375/350/160mm
Weight	10.8kg
Operating temperature range	–25°C … +60°C.
Nighttime power consumption	< 0.5W
Topology	Transformerless.
Cooling	Natural convection
Protection degree	IP65
Relative humidity	0-100%
Altitude	4000m
DC connection	H4/MC4(Optional)
AC connection	Connector
Display	OLED+LED/WIFI+APP
Interfaces: RS485 / USB/Wi-Fi/ GPRS/ RF/LAN	Yes/Yes/Optional.
Warranty: 5 years / 10 years	Yes /Optional.
