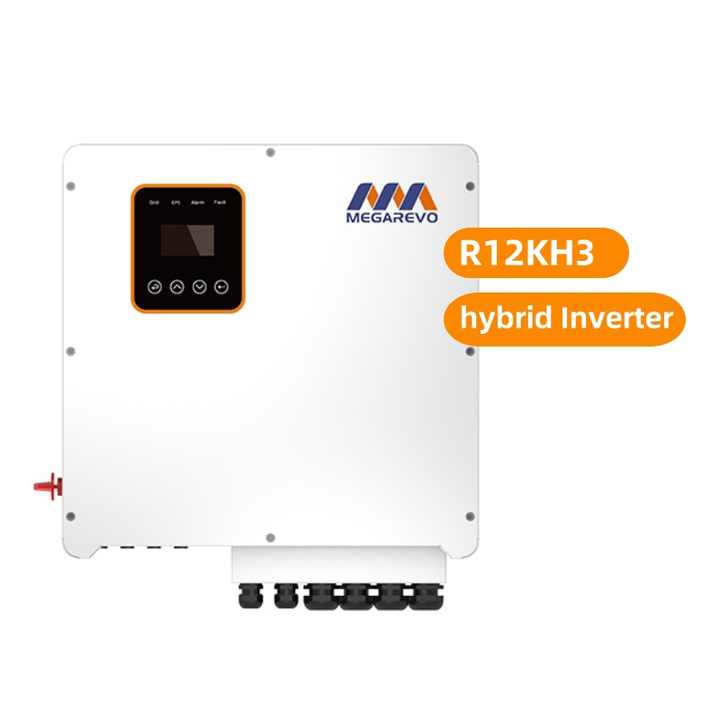

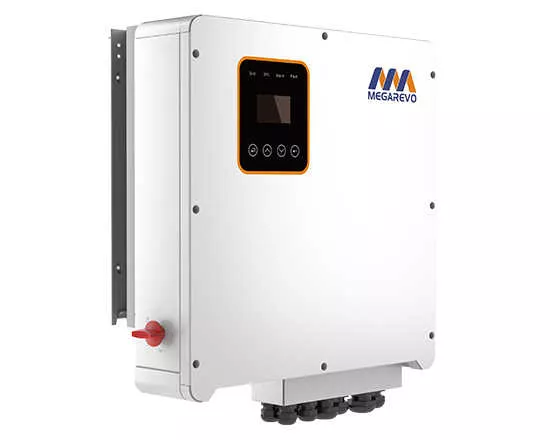

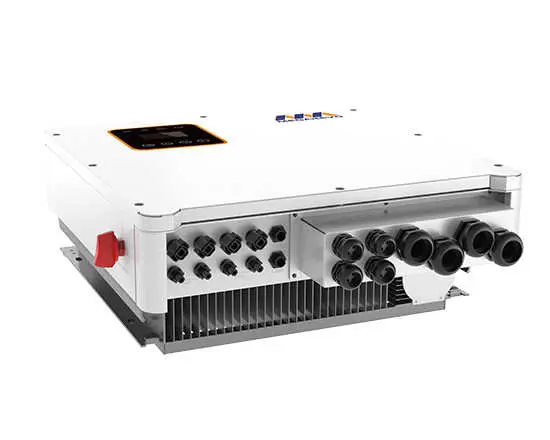

Megarevo R12KH3 Hybrid Three-Phase Inverter

Name: Megarevo R12KH3 Hybrid Three-Phase Inverter
SKU: R12KH3
Availability: InStock

$1,357.00

Brand Name:Megarevo

Model: R12KH3

Type: Three Phase Hybrid

SKU: R12KH3 Category: Solar Inverter

MODEL	R12KH3
PV STRING INPUT
MAX.PV INPUT POWER (KW)	18.
MAX. PV VOLTAGE (V)	1000.
MPPT VOLTAGE RANGE (V)	180~850.
FULL POWER MPPT VOLTAGE RANGE (V)	510~850.
MIN. INPUT VOLTAGE	125/180.
MAX. INPUT CURRENT PER MPPT (A)	13/13.
MAX. SHORT-CIRCUIT CURRENT (A)	16/16.
NO. OF MPPT TRACKERS	2
NO. OF STRINGS PER MPPT TRACKERS	1/1.
RATED PV INPUT VOLTAGE (V)	700.
AC output
RATED POWER (KW)	12.
MAX. APPARENT POWER TO GRID	13.2(kVA).
MAX. APPARENT POWER FROM GRID	26.4.
MAX. APPARENT CURRENT FROM GRID (A)	38.2.
NOMINAL OUTPUT CURRENT TO GRID (A)	17.3.
MAX.OUTPUT CURRENT TO GRID (A)	19.1.
NOMINAL GRID VOLTAGE (V)	380/400，3W+N+PE.
NOMINAL GRID FREQUENCY (HZ)	50/60
THDI	<3%
AC GRID TYPE	L+N+PE.
BATTERY
BATTERY VOLTAGE RANGE (V)	125~600.
MAX. CHARGE/DISCHARGE CURRENT (A)	50.
BATTERY TYPE	Lithium /Lead-acid
COMMUNICATION INTERFACE	CAN.
RATED.CHARGING /DISCHARGING CURRENT (A)	40.
RATED POWER (KW)	12
MAX. APPARENT POWER (KVA)	13.2
NOMINAL OUTPUT CURRENT (A)	17.3
MAX.OUTPUT CURRENT (A)	19.9
NOMINAL OUTPUT VOLTAGE (V)	400 ,3W+N+PE.
NOMINAL OUTPUT FREQUENCY (HZ)	50/60
THDU	＜2%
GENERAL DATA
BATTERY CHAGE/DISCHAGE EFFICIENCY	98.2%.
PV MAX. EFFICIENCY	97.5%
EUROPE EFFICIENCY	97.6%
MPPT EFFICIENCY	≥99.5%
INGRESS PROTECTION	IP65
Relative Humidity	0 – 95%.
NOISE EMISSION (TYPICAL)	<35
OPERATION TEMPERATURE (℃)	-25～60
COOLING	Natural
OPERATING ALTITUDE (M)	4,000 (>2,000 Derating).
DIMENSIONS WDH (MM)	566596220.
NET WEIGHT (KG)	32
HMI	<15
DISPLAY	LCD; APP
EMS/METER	RS485/RS485
BMS	CAN
SUPPORTED COMMUNICATION INTERFACE	WIFI/GPRS
