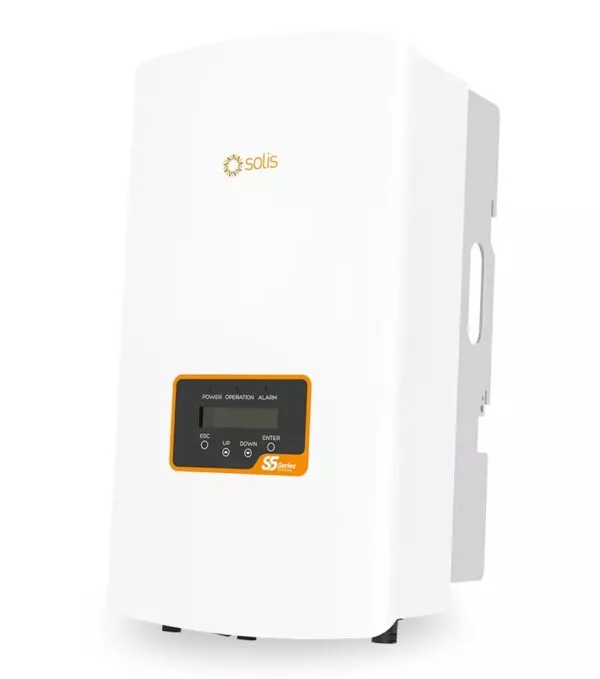

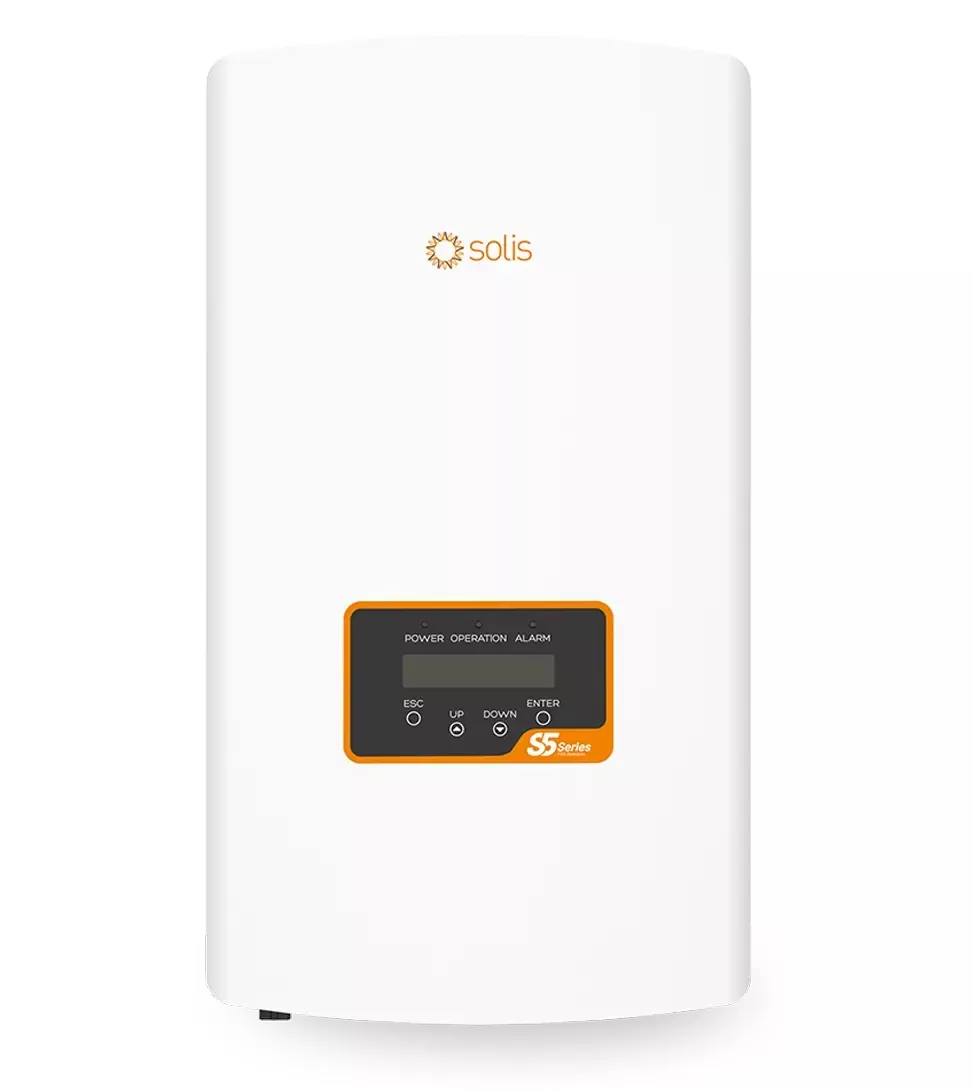

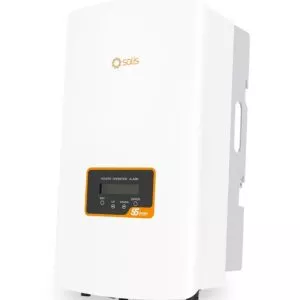

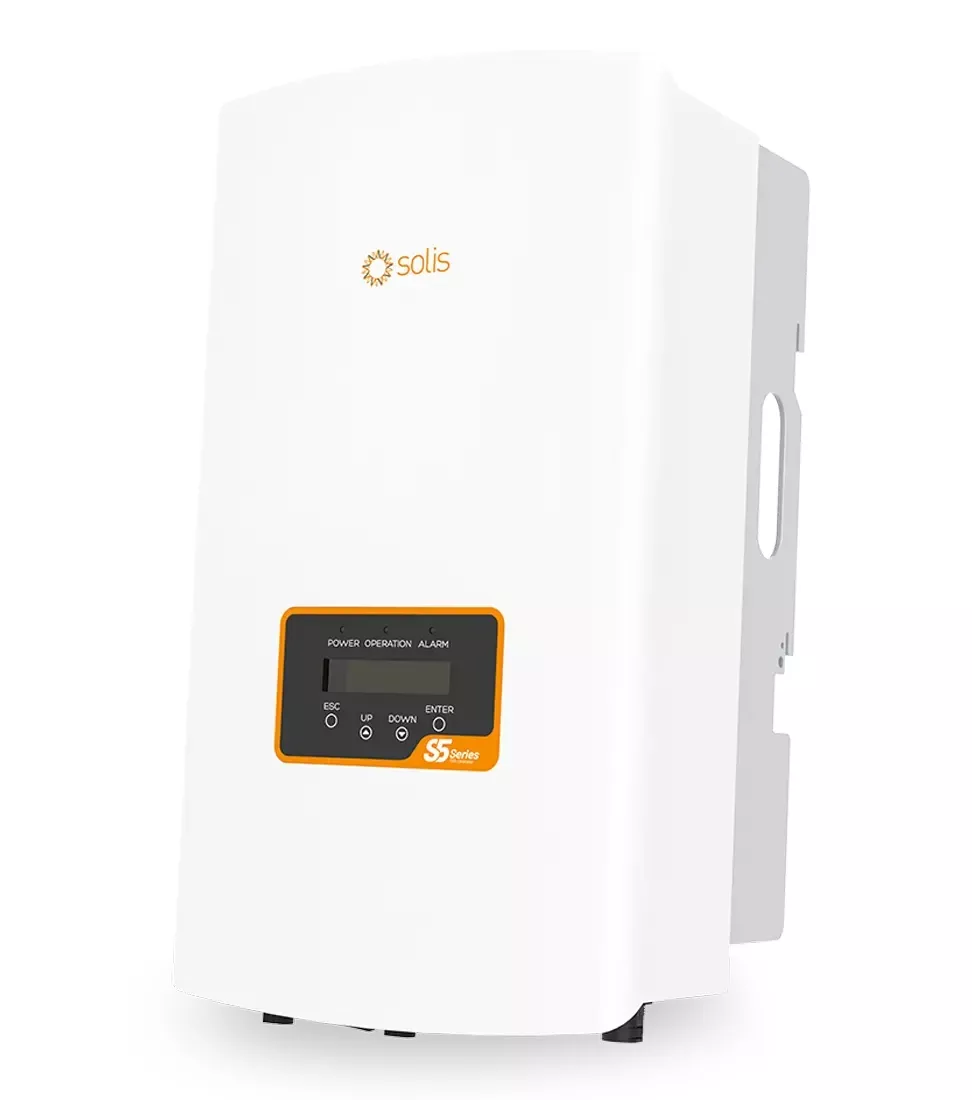

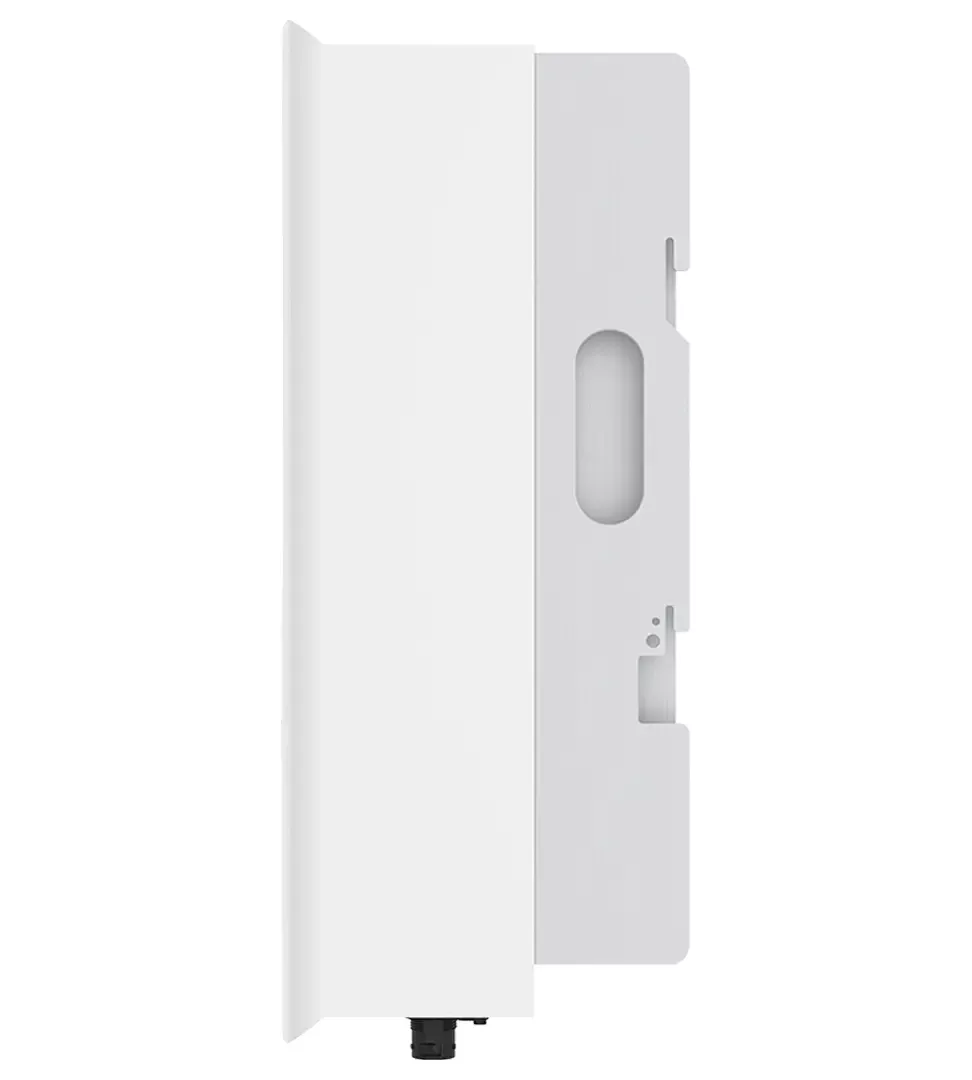

Solis S5-GR3P10K On-Grid and Three-Phase Inverter

Name: Solis S5-GR3P10K On-Grid and Three-Phase Inverter
SKU: S5-GR3P10K
Availability: InStock

$883.00

Brand Name:Solis

Model: S5-GR3P10K

Type: Three-phase

SKU: S5-GR3P10K Category: Solar Inverter

MODEL	S5-GR3P10K
MAX. DC POWER	15kW
MAX. DC VOLTAGE(VDC)	1100 V
START VOLTAGE	180 V
NOMINAL VOLTAGE	600 V
MPP VOLTAGE RANGE	160 – 1000 V
NO. OF MPP TRACKERS	2 / 2
MAX INPUT CURRENT	16 A / 16 A
MAX. SHORT-CIRCUIT CURRENT	20 A / 20 A
RATED OUTPUT POWER	10 kW
MAX. APPARENT OUTPUT POWER	11kVA
MAX. OUTPUT POWER	11kW
RATED GRID VOLTAGE	3/N/PE, 220 V / 380 V, 230 V / 400 V
RATED GRID FREQUENCY	50 Hz or 60 Hz
RATED GRID OUTPUT CURRENT	7.6 A /7.2A
MAX. OUTPUT CURRENT	7.9 A
POWER FACTOR	> 0.99 (0.8 leading – 0.8 lagging)
THDI	<2%.
MAX.EFFICIENCY	98.5%
EUROPEAN EFFICIENCY	97.9%
DC REVERSE POLARITY PROTECTION	yes
SHORT CIRCUIT PROTECTION	yes
OUTPUT OVER CURRENT PROTECTION	yes
SURGE PROTECTION	yes
GRID MONITORING	yes
ANTI-ISLANDING PROTECTION	yes
TEMPERATURE PROTECTION	yes
MULTI PEAK SCAN	yes
INTEGRATED AFCI 2.0	Optional
INTEGRATED DC SWITCH	yes.
DIMENSIONS (W × H × D)	310 × 563 × 219 mm
WEIGHT	16.9 kg
TOPOLOGY	Transformerless
SELF-CONSUMPTION (NIGHT)	< 1 W
OPERATING AMBIENT TEMPERATURE RANGE	-25 ~ +60°C
RELATIVE HUMIDITY	0 – 100%
INGRESS PROTECTION	IP66.
NOISE EMISSION (TYPICAL)	< 30 dB(A)
COOLING CONCEPT	Natural cooling with internal fan
MAX. OPERATION ALTITUDE	4000 m
SAFETY / EMC STANDARD	IEC/EN 62109-1/-2 and IEC/EN 61000-6-2/-3.

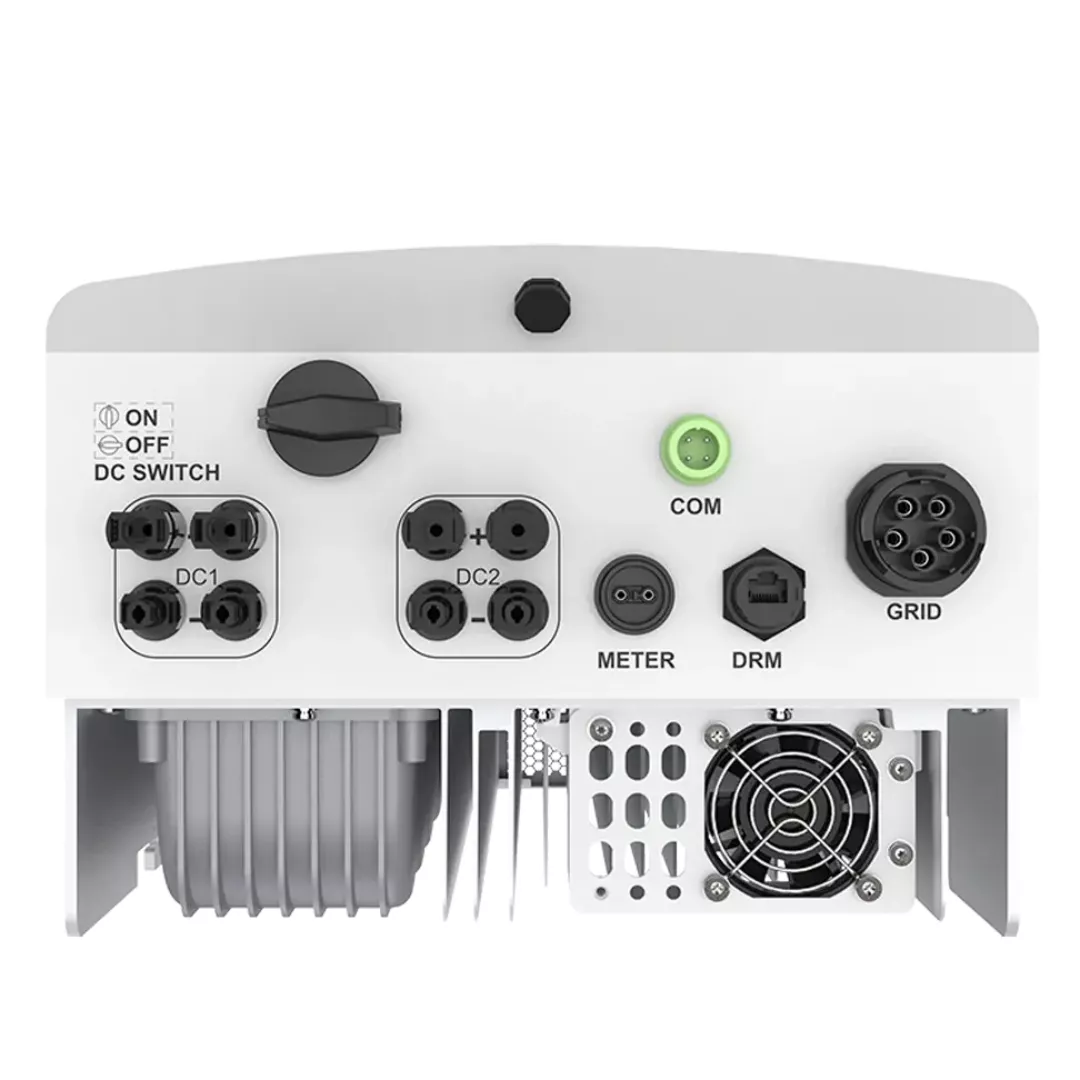

DC CONNECTION	MC4 connector
AC CONNECTION	Quick connection plug
DISPLAY	LCD
COMMUNICATION	RS485, Optional: Wi-Fi, GPRS
